Product Model
nebs-m12g12-ks-10-le12
Selling Points

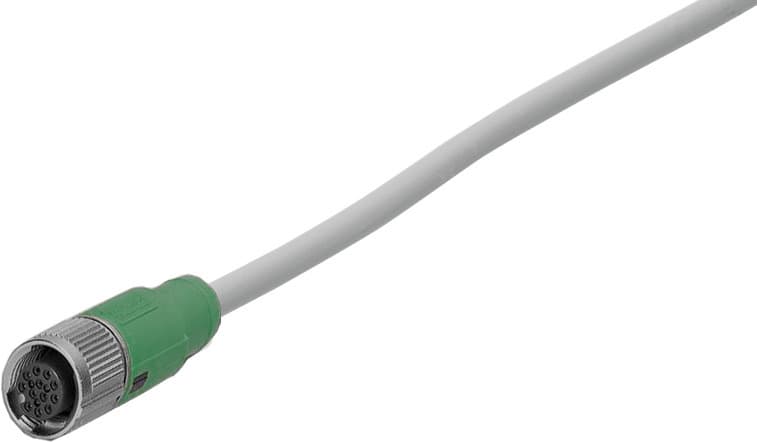

- 1The Festo NEBS-M12G12-KS-10-LE12 connecting cable is designed with a robust 10-meter length and a 12-pin A-coded straight socket, ensuring reliable connectivity in industrial settings.
- 2This cable features an open end for easy connection and disconnection, making it versatile for various assembly positions.
- 3With a product weight of 945 grams, this cable is durable and designed to withstand the demands of industrial environments.
- 4The cable operates within a DC voltage range of 0 to 30 volts and has a nominal operating voltage of 30 volts, making it suitable for a wide range of applications.
- 5The cable's basic design meets Festo's standard for bending strength, ensuring it can withstand minimal bending radii of 85 mm and fixed installation radii of 42.5 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | With label holder | Mounting position | Any |
Product weight | 945g | Electrical connection 1 | Straight socket, M12x1, 12-pin, A-coded |
Electrical connection 2 | Open end, 12-wire | DC operating voltage range | 0V 30V |
Nominal operating voltage DC | 30V | Current rating at 40° C | 1.5A |
Surge resistance | 0.8kV | Shield | yes |
Cable length | 10m | Cable characteristic | Basic |
Connector cable test conditions | Flexural strength: as per Festo standard | Min. cable bending radius | 85mm |
Bending radius, fixed cable installation | 42.5mm | Cable diameter | 8.5mm |
Cable diameter tolerance | ± 0.2 mm | Cable design | 12 x 0.14 mm2 |
Connection cross section | 0.14mm2 | Wire insulation color code | Pin 1 = brown Pin 10 = violet Pin 11 = gray/pink Pin 12 = red/blue Pin 2 = blue Pin 3 = white Pin 4 = green Pin 5 = pink Pin 6 = yellow Pin 7 = black Pin 8 = gray Pin 9 = red |
Degree of protection | IP67 | Ambient temperature | -30°C 80°C |
Ambient temperature with flexible cable installation | -25°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Black | Material of union nut | Die-cast zinc |
Seals material | NBR | Material of pin contacts | Brass Nickel-plated and gold-plated |
Manufacturer ID | 2912452 |
Specifications may be subject to change without notice
