Product Model

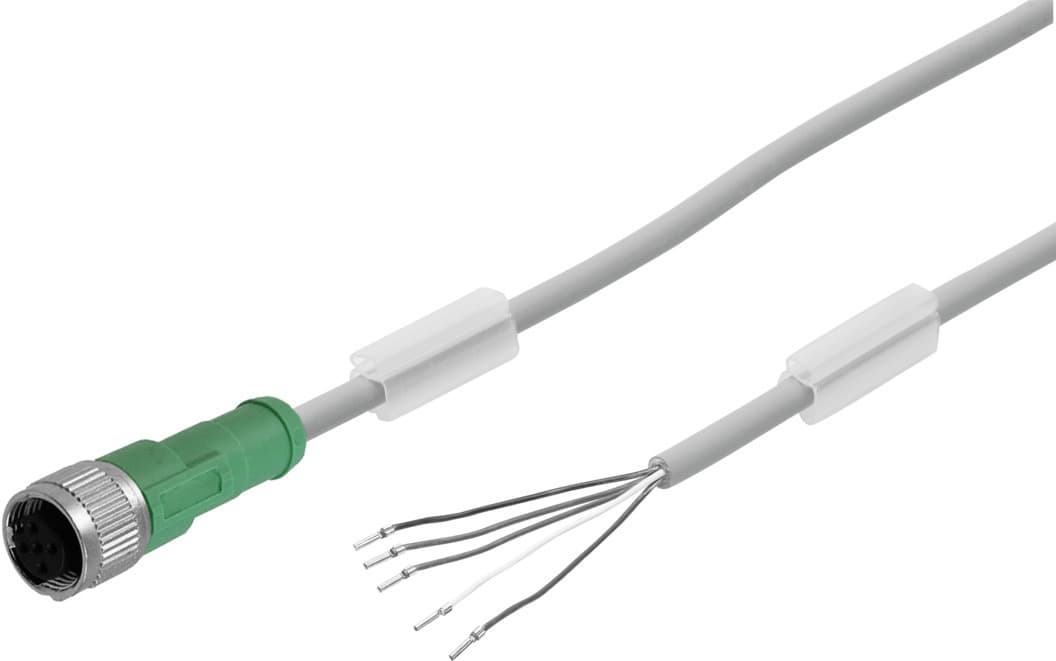

nebs-m12g5-es-5-le5

Selling Points
- 1M12x1 A-coded connectors ensure reliable and secure connections.
- 2With a cable diameter of 5.25 mm and ±0.2 mm tolerance, it withstands various environmental conditions.
- 3Suitable for DC operating voltage range of 0-60 V and AC operating voltage range of 0-48 V.
- 4Immunity to surge up to 1.5 kV ensures the cable can handle electrical spikes.
- 5Bending radius of ≥52 mm for flexible cable installation makes it versatile for different applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Cable designation | With 2x label holders | Product weight | 276g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 5 |
Electrical connection 1, occupied pins/wires | 5 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00995384 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 5 | Electrical connection 2, occupied pins/wires | 5 |
DC operating voltage range | 0V 60V | Operating voltage range AC | 0V 48V |
Current rating at 40° C | 4A | Surge resistance | 1.5kV |
Shield | yes | Cable length | 5m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 26mm | Bending radius, flexible cable installation | 52mm |
Cable diameter | 5.25mm | Cable diameter tolerance | ± 0.2 mm |
Cable design | 5 x 0.34 mm2 | Nominal conductor cross section | 0.34mm2 |
Wire ends | Cut off bluntly | Degree of protection | IP65 IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
Ambient temperature with flexible cable installation | -25°C 60°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
Seals material | NBR | Material of pin contacts | Bronze, nickel-plated and gold-plated |
Insulating sheath material | PP | Manufacturer ID | 8030962 |
Specifications may be subject to change without notice
