Product Model
nebs-sm12g12-e-0.3-n-m12g12
Selling Points

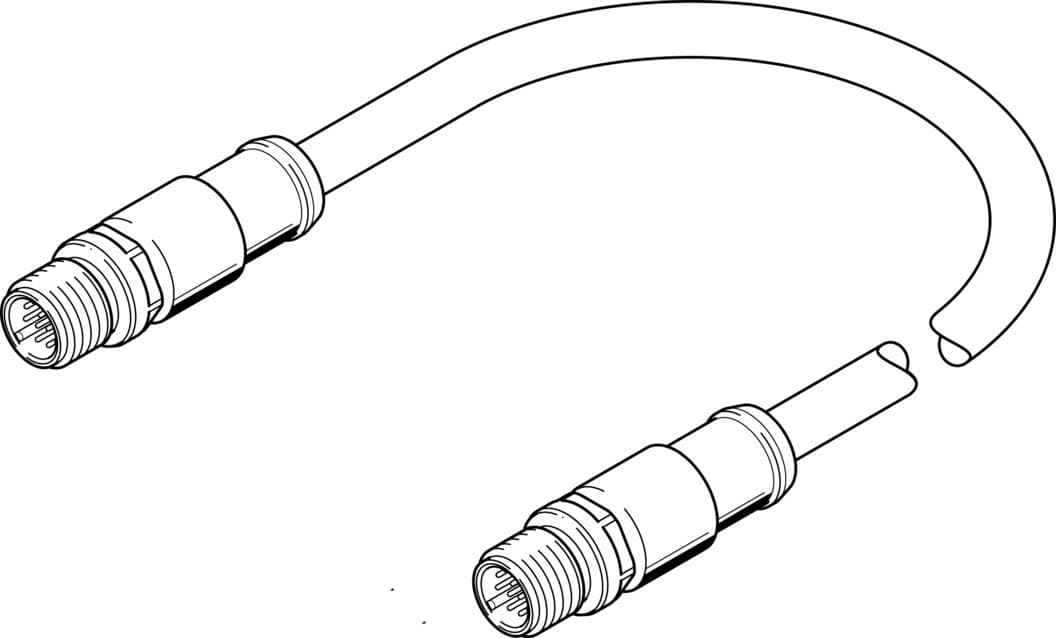

- 1The Festo NEBS-SM12G12-E-0.3-N-M12G12 connecting cable is pre-assembled with a 12-core design, ensuring reliable and efficient connections for pressure sensors. Its M12x1 A-coded socket provides a secure and standardized connection.
- 2This cable is engineered to withstand harsh environments with an operating voltage range of 0 to 30 V DC and 0 to 30 V AC, making it suitable for a variety of industrial applications. It also features a surge resistance of 0.5 kV, ensuring robust electrical performance.
- 3The cable's material composition includes a TPE-U(PUR) cable sheath and nickel-plated brass pin contacts, ensuring high-quality insulation and corrosion resistance. It is also RoHS-compliant and meets the standards of EN 61076-2-101.
- 4The NEBS-SM12G12-E-0.3-N-M12G12 cable is designed with a cable diameter of 6.5 mm and a conductor cross-section of 0.25 mm², providing optimal flexibility and current-carrying capacity. It is also IP67-rated, offering excellent protection against dust and water.
- 5This connecting cable is ideal for applications requiring high reliability and durability, with a bending radius of ≥32 mm for permanent installations and ≥65 mm for moving placements. It is available in lengths of 0.3 meters and is compatible with various Festo accessories, ensuring seamless integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-101 | Cable designation | With accessories |
Contact durability | 100 | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 12 | Electrical connection 1, occupied pins/wires | 12 |
Electrical connection 1, type of mounting | Screw-type lock with hexagon, AF 13 | Electrical connection for input 1, connection pattern | 00995669 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 12 |
Electrical connection 2, occupied pins/wires | 12 | Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 13 |
Electrical connection 2, connection pattern | 00995669 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 1.5A |
Surge resistance | 0.5kV | Cable length | 0.3m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 32mm | Bending radius, flexible cable installation | 65mm |
Cable diameter | 6.5mm | Cable design | 12 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -5°C 70°C |
Ambient temperature with flexible cable installation | -5°C 70°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Black | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Die-cast zinc, nickel-plated |
Material of pin contacts | Brass, gold-plated | Manufacturer ID | 3947404 |
