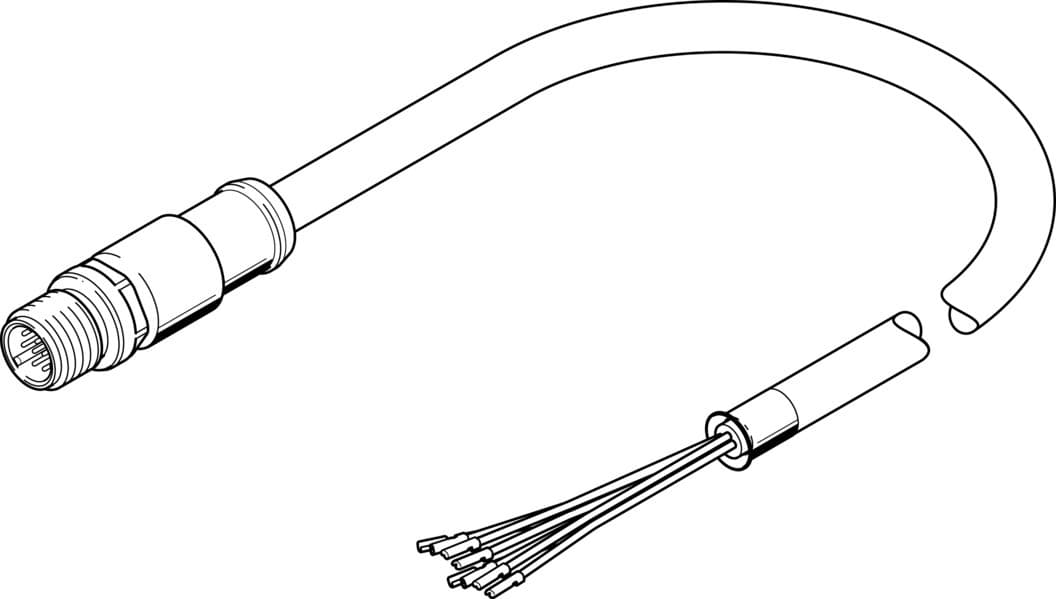

Product Model
nebs-sm12g12-e-0.5-n-le12
Selling Points
- 1The Festo NEBS-SM12G12-E-0.5-N-LE12 connecting cable is designed to meet the EN 61076-2-101 standard, ensuring high-quality and reliable connections for your sensor applications.
- 2With a cable length of 0.5 meters, this cable is perfect for short-distance connections in industrial settings, particularly in energy chains where durability is crucial.
- 3The cable features 12 cores with a nominal cross-section of 0.25 mm², providing ample signal transmission capacity and robustness against electrical surges up to 0.5 kV.
- 4The NEBS-SM12G12-E-0.5-N-LE12 cable is constructed with TPE-U(PUR) material for the sheath and housing, ensuring excellent corrosion resistance and durability in various environmental conditions.
- 5This cable is IP67 rated, providing a high degree of protection against dust and water ingress, making it suitable for use in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-101 | Cable designation | With accessories |
Contact durability | 100 | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 12 | Electrical connection 1, occupied pins/wires | 12 |
Electrical connection 1, type of mounting | Screw-type lock with hexagon, AF 13 | Electrical connection for input 1, connection pattern | 00995669 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 12 |
Electrical connection 2, occupied pins/wires | 12 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 1.5A |
Surge resistance | 0.5kV | Cable length | 0.5m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 32mm | Bending radius, flexible cable installation | 65mm |
Cable diameter | 6.5mm | Cable design | 12 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Wire ends | Cut off bluntly |
Degree of protection | IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -5°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Die-cast zinc, nickel-plated | Material of pin contacts | Brass, gold-plated |
Manufacturer ID | 3947401 |
Specifications may be subject to change without notice
