Product Model

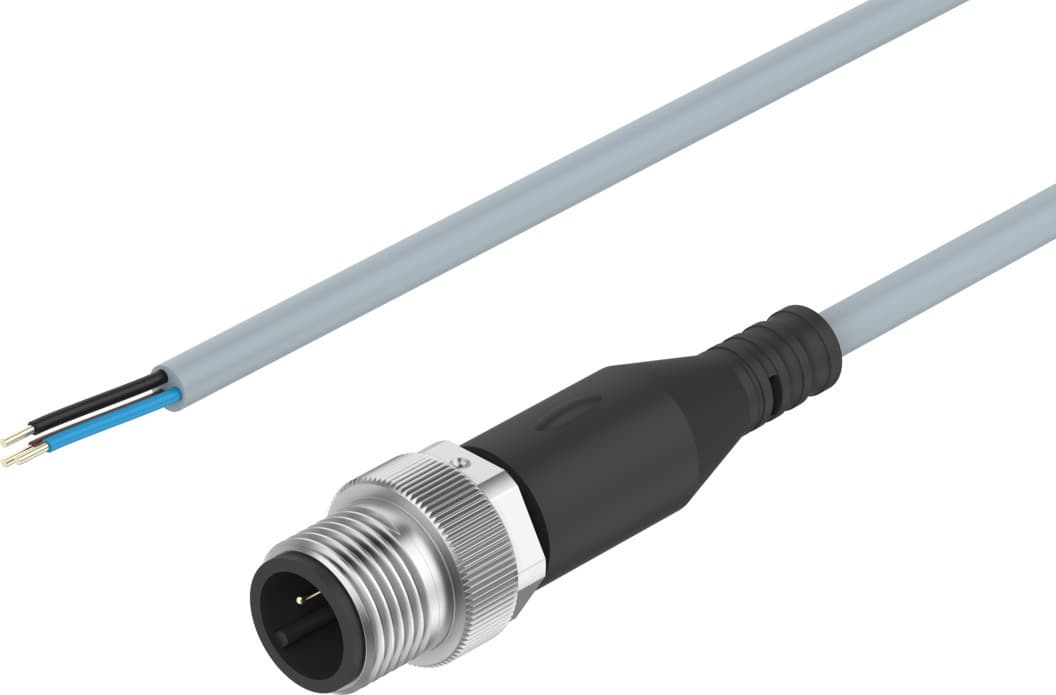

nebu-le3-k-1-n-m12g3
Selling Points
- 1Compliant with EN 60947-5-2 and EN 61076-2-101 standards for wire colors and connection numbers.
- 2Zone 2 (ATEX) and Zone 22 (ATEX) explosion protection for safe use in hazardous areas.
- 3Operational voltage range of 0 to 250 V DC and AC, suitable for various industrial applications.
- 4Current rating of 4 A at 40°C, ensuring reliable electrical performance.
- 5Oil-resistant and durable with a bending radius of up to 75 mm, making it ideal for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-101 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
Cable designation | Without label holder | Product weight | 35g |
Electrical connection 1, function | Field device end | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
Electrical connection 1, occupied pins/wires | 3 | Electrical connection 2, function | Control side |
Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 2, number of pins/wires | 3 | Electrical connection 2, occupied pins/wires | 3 |
Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00995573 |
DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
Current rating at 40° C | 4A | Surge resistance | 2.5kV |
Cable length | 1m | Cable characteristic | Standard |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm | Bending radius, fixed cable installation | 12mm |
Bending radius, flexible cable installation | 39mm | Cable diameter | 3.8mm |
Cable diameter tolerance | ± 0.1 mm | Cable design | 3 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP68 IP69K |
Note on degree of protection | In mounted state | Special features | Oil-resistant |
Ambient temperature | -25°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Brass, nickel-plated | Material of pin contacts | Copper alloy, gold-plated |
Insulating sheath material | PP | Manufacturer ID | 8091515 |
Specifications may be subject to change without notice
