Product Model

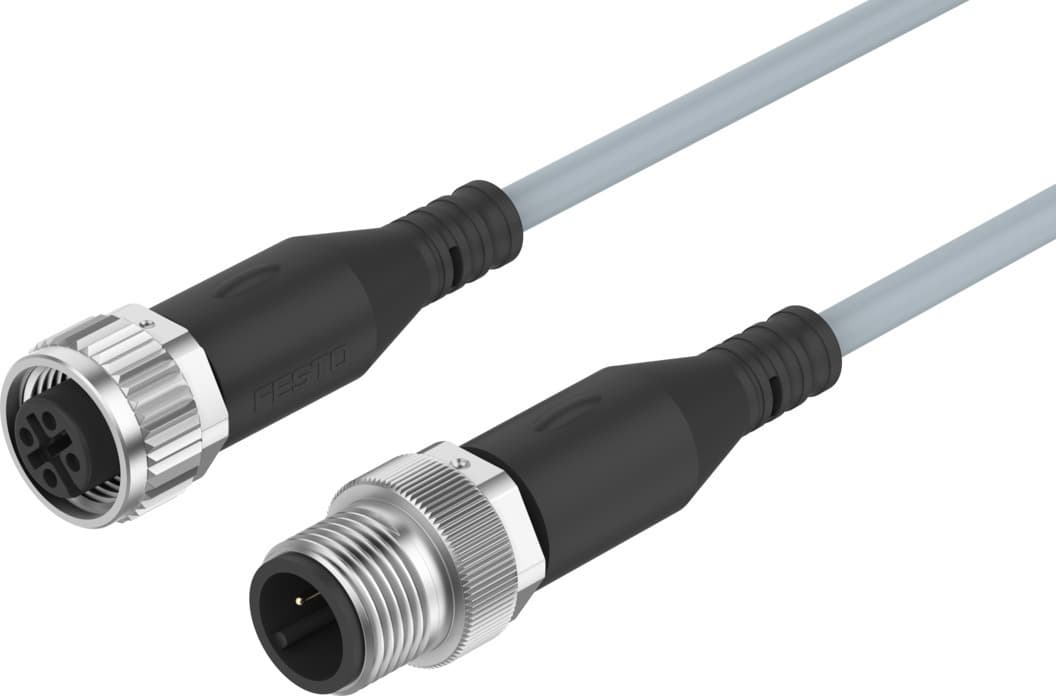

nebu-m12g5-k-1-n-m12g3
Selling Points
- 1ATEX Zone 2 Compliant: Ensures safe operation in hazardous environments.
- 2M12 Connector: Standardized connector for easy integration with various devices.
- 3High Flexural Strength: Withstands up to 5 million cycles, ensuring durability.
- 4IP65 to IP69K Protection: Provides excellent protection against dust and water.
- 5Oil-Resistant Material: Suitable for use in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-101 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
Cable designation | Without label holder | Product weight | 44g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 5 |
Electrical connection 1, occupied pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991867 | Electrical connection 2, function | Control side |
Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 2, number of pins/wires | 3 | Electrical connection 2, occupied pins/wires | 3 |
Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00995573 |
DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
Current rating at 40° C | 4A | Surge resistance | 2.5kV |
Cable length | 1m | Cable characteristic | Standard |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm | Bending radius, fixed cable installation | 12mm |
Bending radius, flexible cable installation | 39mm | Cable diameter | 3.8mm |
Cable diameter tolerance | ± 0.1 mm | Cable design | 3 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP68 IP69K |
Note on degree of protection | In mounted state | Special features | Oil-resistant |
Ambient temperature | -25°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Brass, nickel-plated | Seals material | NBR |
Material of pin contacts | Copper alloy, gold-plated | Insulating sheath material | PP |
Manufacturer ID | 8091511 |
Specifications may be subject to change without notice
