Product Model

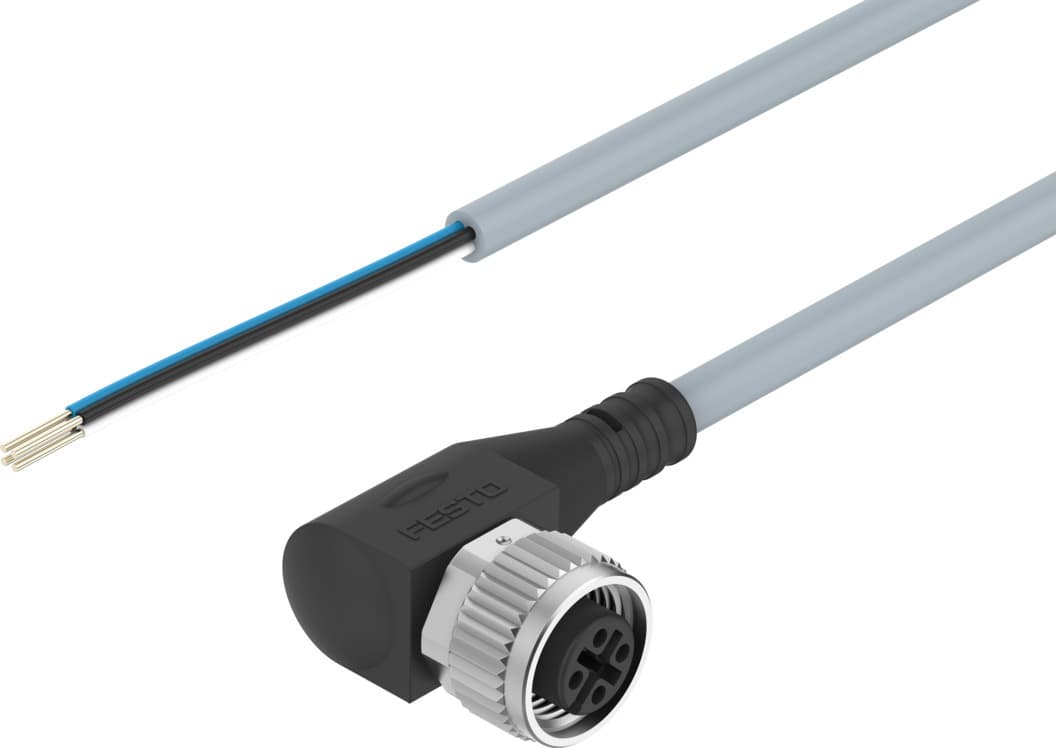

nebu-m12w5-k-2.5-le4
Selling Points
- 1The Festo NEBU-M12W5-K-2.5-LE4 connecting cable features a robust M12 connector, ensuring secure and reliable connections in industrial settings.
- 2With a cable length of 2.5 meters, this cable is perfect for applications where extended reach is required without compromising on performance.
- 3The cable is designed to operate within a wide voltage range of 0 to 250 V DC and AC, making it versatile for various industrial applications.
- 4The cable has a high current carrying capacity of 4 A at 40°C, ensuring it can handle demanding electrical loads.
- 5The NEBU-M12W5-K-2.5-LE4 cable is made from halogen-free and RoHS-compliant materials, ensuring safety and environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-101 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
Cable designation | With 2x label holders | Product weight | 78g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 5 |
Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991861 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
Current rating at 40° C | 4A | Surge resistance | 2.5kV |
Cable length | 2.5m | Cable characteristic | Standard |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm | Bending radius, fixed cable installation | 14mm |
Bending radius, flexible cable installation | 46mm | Cable diameter | 4.5mm |
Cable diameter tolerance | ± 0.1 mm | Cable design | 4 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP68 IP69K |
Note on degree of protection | In mounted state | Special features | Oil-resistant |
Ambient temperature | -25°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Brass, nickel-plated | Seals material | NBR |
Material of pin contacts | Copper alloy, gold-plated | Insulating sheath material | PP |
Manufacturer ID | 550325 |
Specifications may be subject to change without notice
