Product Model

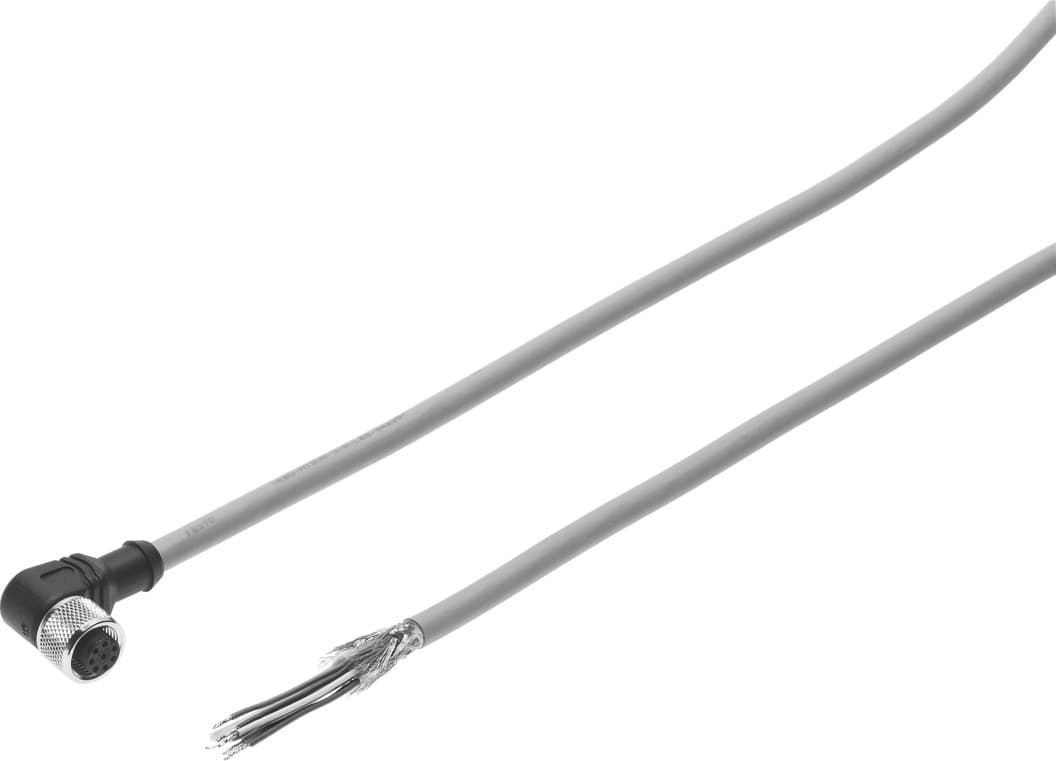

nebu-m12w8-k-10-n-le8
Selling Points
- 1Compliant with EN 61076-2-101 standard for reliable electrical connections.
- 28-pin M12x1 A-coded socket ensures secure and efficient data transfer.
- 3IP67 protection against dust and water, ideal for harsh environments.
- 410-meter cable length provides ample reach for various applications.
- 5Shielded cable with 0.25 mm² conductor ensures reliable signal integrity and resistance to electromagnetic interference.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-101 | Cable designation | Without label holder |
Product weight | 570g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
Electrical connection 1, type of mounting | Compatible with rotatable/non-rotatable screw lock | Electrical connection for input 1, connection pattern | 00992265 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 8 |
Electrical connection 2, occupied pins/wires | 8 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 2A |
Surge resistance | 0.8kV | Shield | yes |
Cable length | 10m | Cable characteristic | Standard |
Bending radius, fixed cable installation | 32mm | Bending radius, flexible cable installation | 66mm |
Cable diameter | 6.3mm | Cable diameter tolerance | ± 0.2 mm |
Cable design | 8 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
Wire ends | Tin-plated | Degree of protection | IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -25°C 80°C |
Ambient temperature with flexible cable installation | -5°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Note on the contamination level | In mounted state | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Material of screw-type lock | Brass, chrome-plated |
Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
Insulating sheath material | PP | Manufacturer ID | 570007 |
Specifications may be subject to change without notice
