Product Model
nebu-m8g3-r-10-le3
Selling Points
- 1High-Quality Construction: Built with durable materials for long-lasting performance.
- 2Versatile Applications: Suitable for proximity sensors, position transmitters, and individual valves.
- 310m Length: Provides ample reach for complex setups.
- 4M8 3-Pin Socket: Compatible with a wide range of M8 and M12 plugs.
- 5Turkey Origin: Manufactured in Turkey for quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104 | Explosion prevention and protection | Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX) |
Cable designation | With 2x label holders | Product weight | 242g |

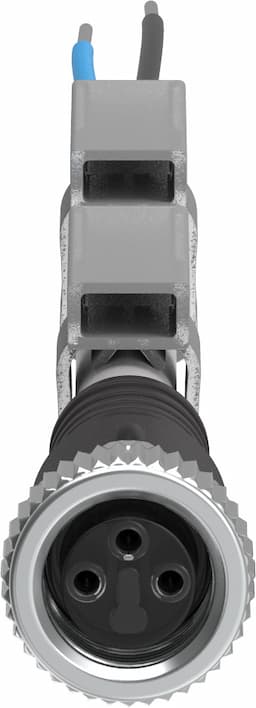

Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection 1, occupied pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991871 | Electrical connection 2, function | Control side |

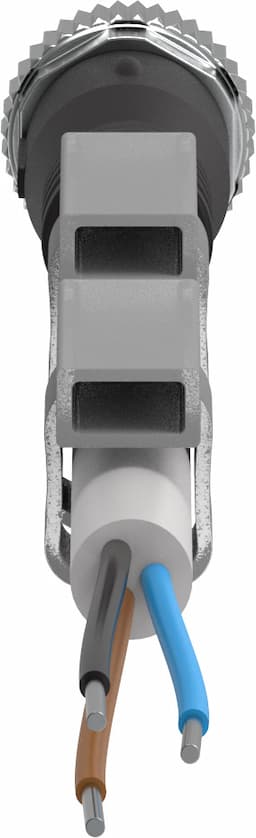

Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 3 | Electrical connection 2, occupied pins/wires | 3 |
DC operating voltage range | 0V 60V | Operating voltage range AC | 0V 60V |
Current rating at 40° C | 3A | Surge resistance | 1.5kV |
Cable length | 10m | Cable characteristic | Suitable for robot applications |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Bending radius, fixed cable installation | 12mm |
Bending radius, flexible cable installation | 39mm | Cable diameter | 3.8mm |
Cable diameter tolerance | ± 0.1 mm | Cable design | 3 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP68 IP69K |
Note on degree of protection | In mounted state | Special features | Oil-resistant |
Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Brass, nickel-plated | Seals material | NBR |
Material of pin contacts | Copper alloy, gold-plated | Insulating sheath material | PP |
Manufacturer ID | 8003129 |
Specifications may be subject to change without notice
