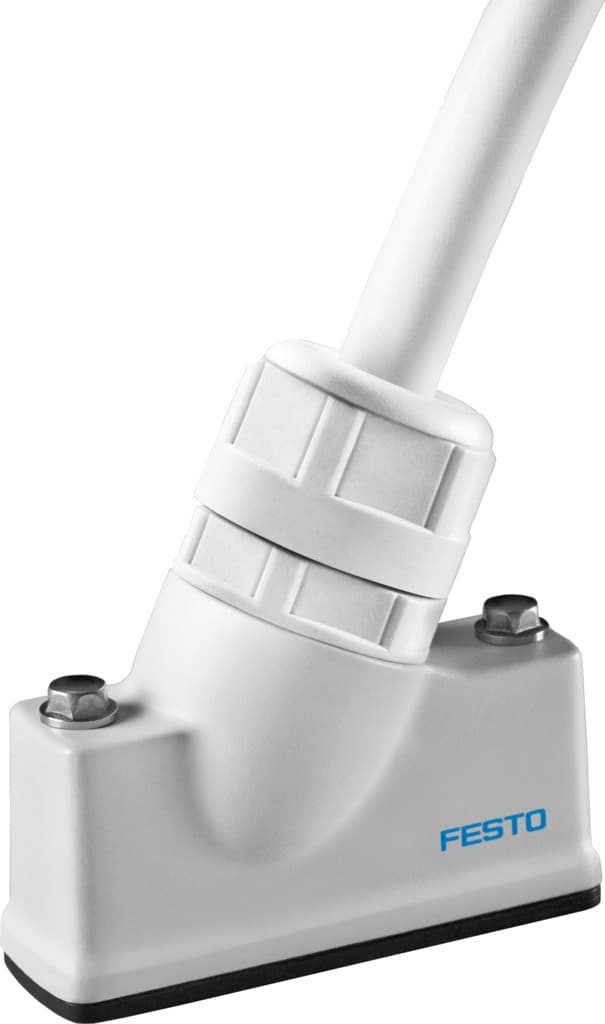

Product Model
nebv-
Selling Points
- 1High Contact Durability: Ensures consistent performance in demanding industrial environments.
- 2Reliable Electrical Connections: Field device side electrical connection with snap-in locking for secure mounting.
- 3Versatile Mounting Options: Optional mounting positions for flexible installation.
- 4Compliant with EU RoHS Directive: Meets environmental standards with CE marking.
- 5Durable Cable Structure: Standard cable characteristic with 2 x 0.14 mm² cable structure for robustness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Additional functions | Holding current reduction Protective circuit | Cable designation | Without label holder |
Contact durability | 50 | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket Socket, narrow |
Electrical connection 1, cable outlet | Straight Angled | Electrical connection 1, connection technology | Connection diagram ZC, self-tapping screw Connection diagram ZC, metric screw Connection diagram type C as per EN 175301-803 Sub-D |
Electrical connection 1, number of pins/wires | 25 | Electrical connection 2, function | Control side |
Electrical connection 2, design | Rectangular Round | Electrical connection 2, connection type | Cable Plug |
Electrical connection 2, cable outlet | Straight Angled | Electrical connection 2, connection technology | Connection diagram ZB, self-tapping screw M8x1 A-coded as per EN 61076-2-104 Open end |
Electrical connection 2, number of pins/wires | 3 | DC operating voltage range | 0V 230V |
Operating voltage range AC | 0V 230V | Cable length | 0.5m 30m |
Cable characteristic | Standard Suitable for energy chains | Connector cable test conditions | Test conditions on request |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Material of cable sheath | PVC TPE-U(PUR) | Color cable sheath | Gray |
Manufacturer ID | 8003577 |
Specifications may be subject to change without notice
