Product Model
nebv-a1w3f-p-k-0.3-n-m12w3
Selling Points

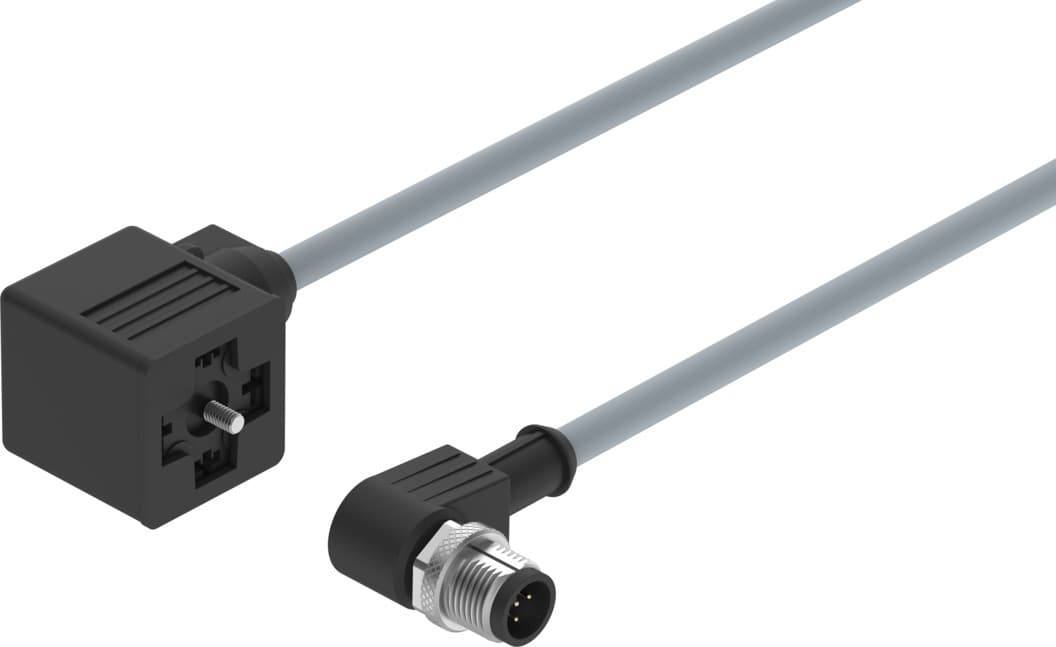

- 1The Festo NEBV-A1W3F-P-K-0.3-N-M12W3 connecting cable offers a reliable and durable solution for electrical connections in industrial settings, ensuring high-performance operations.
- 2This cable features a protective circuit and a yellow LED for switching status indication, providing real-time monitoring and enhanced safety.
- 3With an IP67 degree of protection, the NEBV-A1W3F-P-K-0.3-N-M12W3 is designed to withstand harsh environments and maintain its integrity even in wet conditions.
- 4The cable is constructed with 3 x 0.75 mm² wires, ensuring a stable and efficient electrical connection, and is available in a length of 0.3 meters.
- 5The Festo NEBV-A1W3F-P-K-0.3-N-M12W3 is compliant with EU RoHS directives and VDMA24364 zone III, making it a sustainable choice for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Certification | c CSA us (OL) | Switching status indication | LED yellow |
Additional functions | Protective circuit | Cable designation | Without label holder |
Product weight | 60g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995710 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Angled |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 5 |
Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 13 |
Electrical connection 2, connection pattern | 00995711 | DC operating voltage range | 18V 30V |
Nominal operating voltage DC | 24V | Operating voltage range AC | 18V 30V |
Nominal operating voltage AC | 24V | Current rating at 40° C | 4A |
Surge resistance | 0.8kV | Protective earth connection | Available |
Cable length | 0.3m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Cable diameter | 5.9mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 3 x 0.75 mm2 |
Degree of protection | IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of union nut | Die-cast zinc Nickel-plated | Insulating sheath material | PP |
Manufacturer ID | 3679771 |
Specifications may be subject to change without notice
