Product Model
nebv-a1w3-k-0.6-n-le3
Selling Points

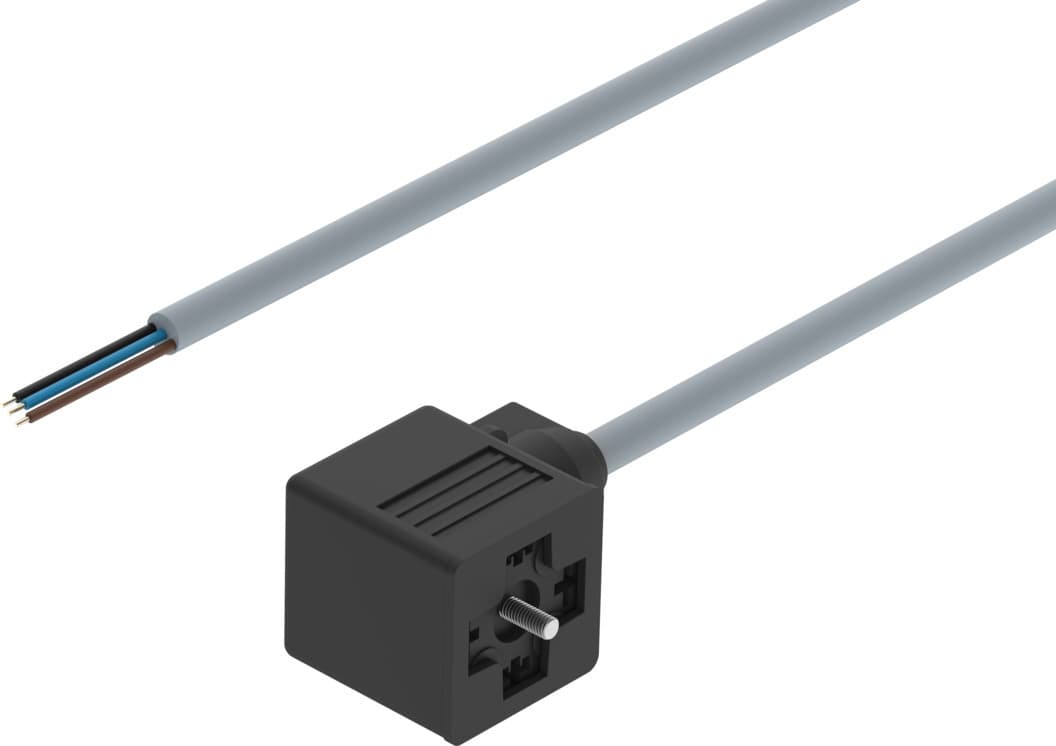

- 1The Festo NEBV-A1W3-K-0.6-N-LE3 connecting cable ensures reliable connections between field devices and controllers, with a CSA us (OL) approval for safety and durability.
- 2This cable features an angular design with a plug socket connection, making it ideal for tight spaces and easy installation on solenoid valves with an M3 central screw.
- 3With a cable diameter of 5.9 mm and a tolerance of ±0.3 mm, this cable is built to withstand various environmental conditions, including temperatures from -25°C to 80°C.
- 4The NEBV-A1W3-K-0.6-N-LE3 offers IP67 protection, ensuring it is dustproof and waterproof, making it suitable for harsh industrial environments.
- 5This cable meets EU low-voltage directives, UK RoHS instructions, and VDMA24364 zone III standards, ensuring compliance with various regulatory requirements for electrical equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Certification | c CSA us (OL) | Cable designation | Without label holder |
Product weight | 80g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995710 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 3 |
Electrical connection 2, occupied pins/wires | 3 | DC operating voltage range | 0V 230V |
Nominal operating voltage DC | 230V | Operating voltage range AC | 0V 230V |
Nominal operating voltage AC | 230V | Current rating at 40° C | 10A |
Surge resistance | 4kV | Protective earth connection | Available |
Cable length | 0.6m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Cable diameter | 5.9mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 3 x 0.75 mm2 |
Degree of protection | IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Insulating sheath material | PP | Manufacturer ID | 3579466 |
Specifications may be subject to change without notice
