Product Model

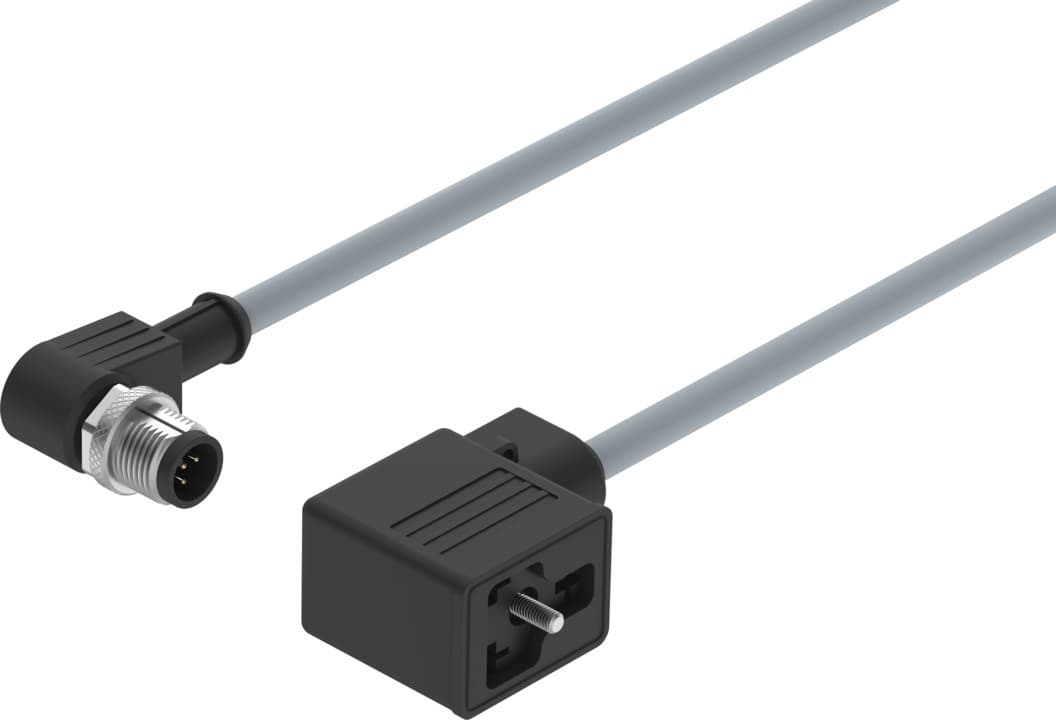

nebv-b2w3-k-0.6-n-m12w3
Selling Points
- 1The Festo NEBV-B2W3-K-0.6-N-M12W3 connecting cable is specifically designed for use with connecting valves, ensuring seamless integration into your automation system.
- 2This cable features a 2-pin straight socket connection, providing a reliable and easy-to-use interface for your automation needs.
- 3The cable is made from high-quality grey PVC material, offering durability and resistance to environmental factors.
- 4With a length of 0.6 meters, this cable is versatile and can be used in a variety of applications, from small-scale to medium-scale automation projects.
- 5The NEBV-B2W3-K-0.6-N-M12W3 cable is certified for use in industrial environments and meets stringent safety standards, ensuring reliable performance and safety in your operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Certification | c CSA us (OL) | Cable designation | Without label holder |
Product weight | 100g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram form B as per industrial standard, 11 mm |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, occupied pins/wires | 3 |
Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995628 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Angled |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 5 |
Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 13 |
Electrical connection 2, connection pattern | 00995711 | DC operating voltage range | 0V 110V |
Nominal operating voltage DC | 110V | Operating voltage range AC | 0V 110V |
Nominal operating voltage AC | 110V | Current rating at 40° C | 1A |
Surge resistance | 1.5kV | Protective earth connection | Available |
Cable length | 0.6m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Cable diameter | 5.9mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 3 x 0.75 mm2 |
Degree of protection | IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of union nut | Die-cast zinc Nickel-plated | Insulating sheath material | PP |
Manufacturer ID | 3579464 |
Specifications may be subject to change without notice
