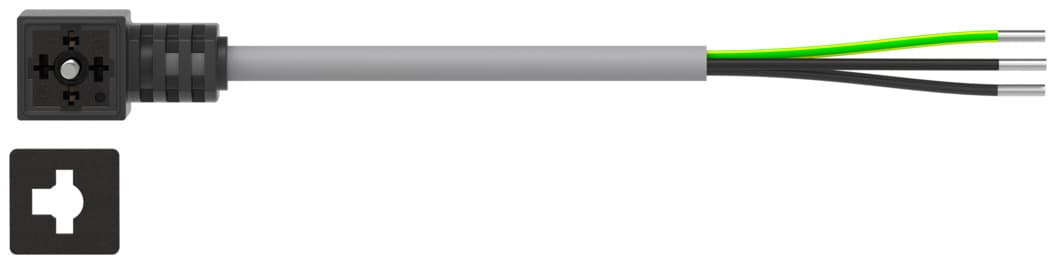

Product Model
nebv-c1sw3-k-5-n-le3-s9
Selling Points
- 1Robust Design: Engineered for reliable valve connections with a robust socket and wire end sleeve.
- 2High-Frequency Compatibility: Compatible with 50Hz frequency, ensuring seamless operation in various industrial settings.
- 3Durable Cable: Constructed with 3 x 0.5 mm² conductors, providing high current rating (6A at 40°C) and surge resistance (4kV).
- 4Flexible Installation: Can be dynamically bent, suitable for static or flexible installations, with a bending radius of ≥52mm.
- 5Compliant with Regulations: Meets EU Low Voltage Directive and RoHS compliance, ensuring safety and environmental standards are met.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Contact durability | 50 |
Product weight | 235g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket, narrow |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, information on cable outlet | Can be rotated through 180° |
Electrical connection 1, connection technology | Connection diagram type C as per EN 175301-803 | Electrical connection 1, number of pins/wires | 4 |
Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | On air solenoid valve with M2.5 central screw |
Electrical connection for input 1, connection pattern | 00995798 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 3 | Electrical connection 2, occupied pins/wires | 3 |
DC operating voltage range | 0V 230V | Operating voltage range AC | 0V 230V |
Current rating at 40° C | 6A | Surge resistance | 4kV |
Reverse polarity protection | Bipolar | Protective earth connection | Available |
Cable length | 5m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Bending radius, flexible cable installation | 52mm |
Cable diameter | 5.2mm | Cable diameter tolerance | ± 0.1 mm |
Cable design | 3 x 0.5 mm2 | Nominal conductor cross section | 0.5mm2 |
Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -20°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 3 - High corrosion stress |
Material of cable sheath | PVC | Color cable sheath | Gray |
Housing material | TPE-U(PU) | Housing colour | Black |
Material of screws | Stainless steel | Seals material | HNBR |
Material of pin contacts | Copper alloy, tin-plated | Insulating sheath material | PVC |
Manufacturer ID | 8032629 |
