Product Model

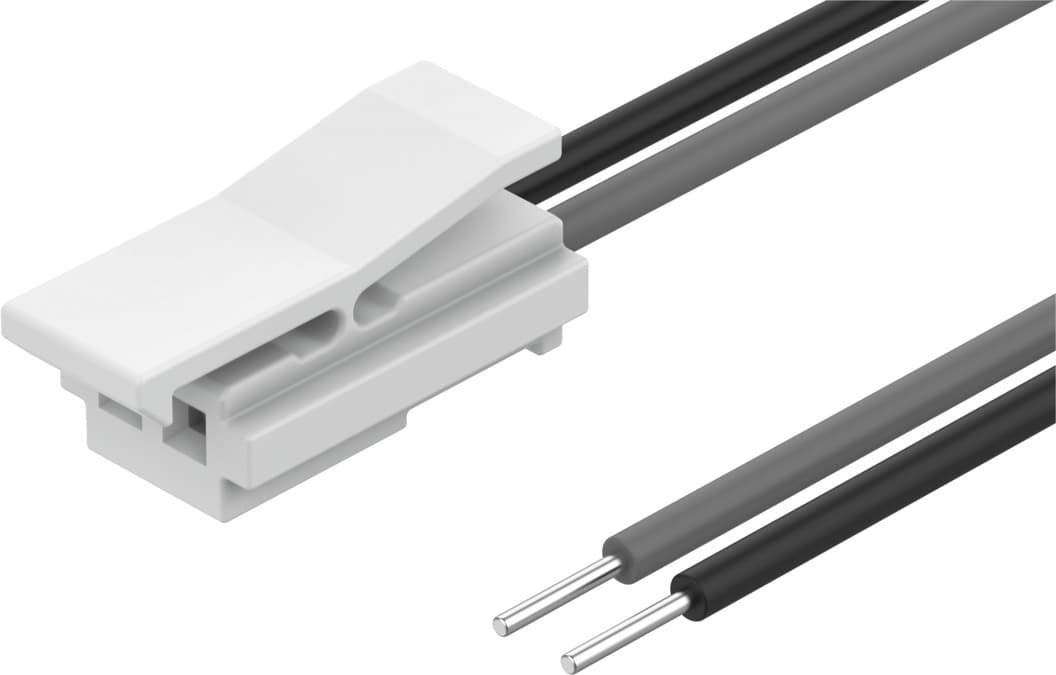

nebv-hpg2-pn-0.3-n-le2
Selling Points
- 1High-Quality Material: Made from PEEK housing and PVC insulating sheath for durability and reliability.
- 2Static Application Ready: Designed for static applications with a bending radius of ≥11 mm.
- 3Compact Design: Weighs only 2 g, making it easy to integrate into your system.
- 4Versatile Mounting: Can be mounted in any position with a push-pull connection.
- 5Compliant with Regulations: RoHS-compliant and meets VDMA24364 zone III standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. no. of solenoid coils | 1 | Cable designation | Without label holder |
Mounting position | Any | Product weight | 2g |
Electrical connection 1, function | Field device end Switching output | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Cable with socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | Port pattern HP | Electrical connection 1, number of pins/wires | 2 |
Electrical connection 1, occupied pins/wires | 2 | Electrical connection 1, type of mounting | Push-pull with interlock to prevent unintentional pulling |
Electrical connection 2, function | Power supply Control side | Electrical connection 2, connection type | 2x single wires |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 0V 24V |
Shield | no | Information on operation | Only operate with external power reduction |
Cable length | 0.3m | Cable characteristic | for static applications |
Bending radius, fixed cable installation | 11mm | Cable diameter | 0.96mm |
Degree of protection | IP40 | Ambient temperature | 0°C 50°C |
Storage temperature | -20°C 70°C | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 0 - No corrosion stress |
Housing material | PEEK | Housing colour | Gray |
Insulating sheath material | PVC | Manufacturer ID | 8122832 |
Specifications may be subject to change without notice
