Product Model
nebv-m12g8-k-5-m12g4
Selling Points

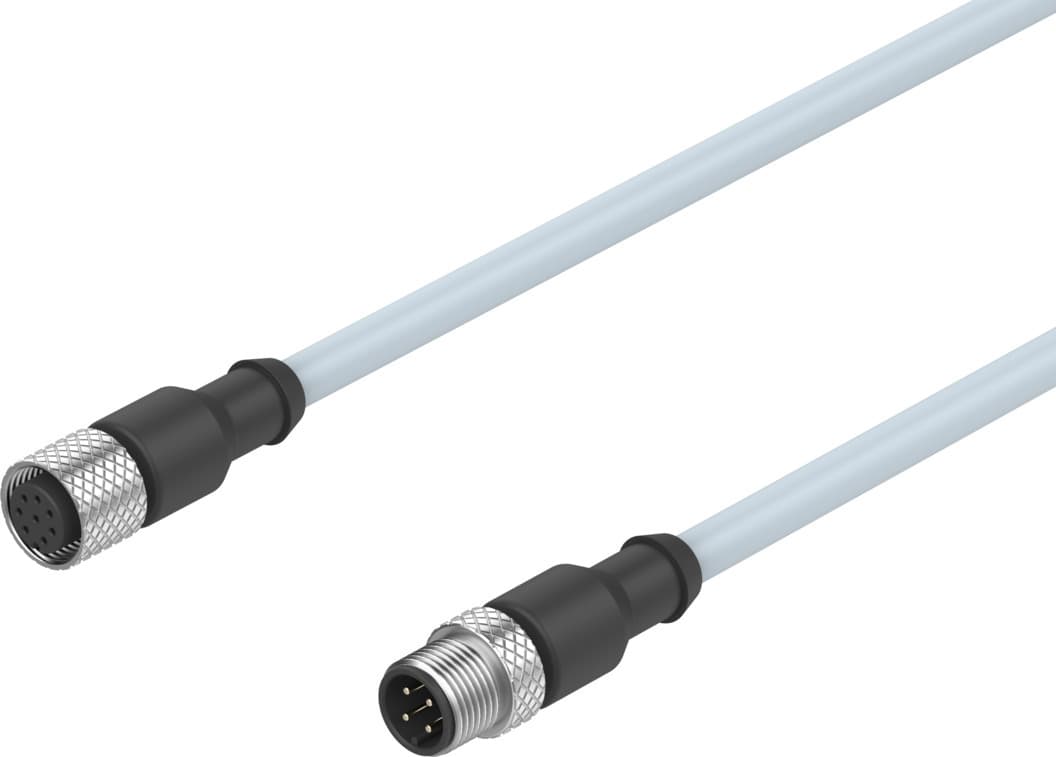

- 1The Festo NEBV-M12G8-K-5-M12G4 connecting cable is designed to meet the highest standards of electrical connectivity, ensuring reliable and efficient data transfer between field devices and control systems.
- 2This cable conforms to the EN 61076-2-101 standard, ensuring it meets the necessary safety and performance criteria for industrial applications.
- 3Equipped with a shielded cable design, the NEBV-M12G8-K-5-M12G4 provides excellent protection against electromagnetic interference (EMI) and radio-frequency interference (RFI).
- 4With an IP67 rating, this cable offers robust protection against dust and water ingress, making it suitable for harsh industrial environments.
- 5The cable features a bending radius of ≥58 mm for flexible installations and ≥29 mm for fixed installations, providing flexibility in its application.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-101 | Cable designation | Without label holder |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 8 |
Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00995386 |
DC operating voltage range | 0V 30V | Operating voltage range AC | 0V 30V |
Current rating at 40° C | 2A | Surge resistance | 0.8kV |
Shield | yes | Cable length | 5m |
Cable characteristic | Standard | Bending radius, fixed cable installation | 29mm |
Bending radius, flexible cable installation | 58mm | Cable diameter | 5.6mm |
Cable diameter tolerance | ± 0.2 mm | Cable design | 4 x 0.34 mm2 |
Nominal conductor cross section | 0.34mm2 | Degree of protection | IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -25°C 85°C |
Ambient temperature with flexible cable installation | -5°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
Seals material | NBR | Material of pin contacts | Brass, gold-plated |
Insulating sheath material | PP | Manufacturer ID | 553576 |
Specifications may be subject to change without notice
