Product Model

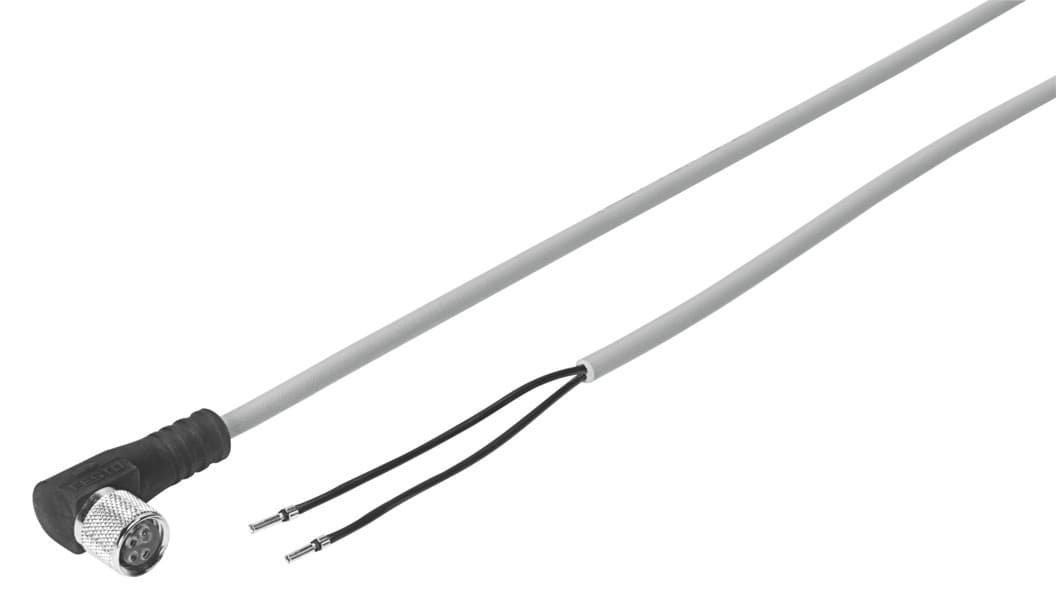

nebv-m8w4l-e-2.5-le2
Selling Points
- 1Engineered to meet the demands of automation and control systems.
- 2High-performance cable with a 4-pin/2-wire electrical connection.
- 3Operates within a DC voltage range of 20.4 to 26.4 V.
- 4Suitable for energy chains and withstands ambient temperatures from -10°C to 50°C.
- 5Meets EN 61076-2-101 and ISO 20401 standards for industrial connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-101 ISO 20401 | Switching status indication | LED yellow |
Product weight | 45g | Electrical connection | 4-pin/2-wire Angled socket/cable M8x1 |
DC operating voltage range | 20.4V 26.4V | Current rating at 40° C | 3A |
Cable length | 2.5m | Cable characteristic | Suitable for energy chains |
Min. cable bending radius | 35mm | Cable diameter | 3.3mm |
Cable design | 2 x 0.25 mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP65 IP67 | Ambient temperature | -10°C 50°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Housing material | TPE-U(PU) | Material of pin contacts | Brass Gold-plated |
Insulating sheath material | PVC | Manufacturer ID | 562471 |
Specifications may be subject to change without notice
