Product Model

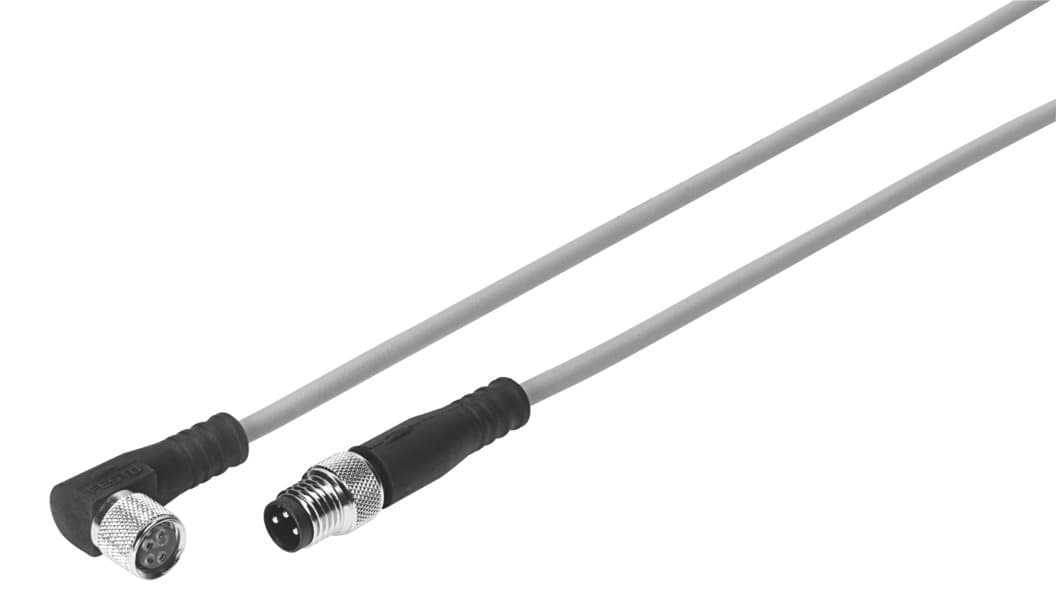

nebv-m8w4l-e-2.5-m8g3
Selling Points
- 1Compliant with EN 61076-2-101 and ISO 20401 standards.
- 2Yellow LED status indication for easy monitoring.
- 3Robust electrical connections with 4-pin/3-pin configuration.
- 4Suitable for energy chains with a 2.5m cable length.
- 5IP65 and IP67 protection, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-101 ISO 20401 | Switching status indication | LED yellow |
Product weight | 50g | Electrical connection | 4-pin/3-pin Angled socket/straight plug M8x1/M8x1 |
DC operating voltage range | 20.4V 26.4V | Current rating at 40° C | 3A |
Cable length | 2.5m | Cable characteristic | Suitable for energy chains |
Min. cable bending radius | 35mm | Cable diameter | 3.3mm |
Cable design | 2 x 0.25 mm2 | Degree of protection | IP65 IP67 |
Ambient temperature | -10°C 50°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | PUR | Housing material | TPE-U(PU) |
Material of pin contacts | Brass Gold-plated | Insulating sheath material | PVC |
Manufacturer ID | 562468 |
Specifications may be subject to change without notice
