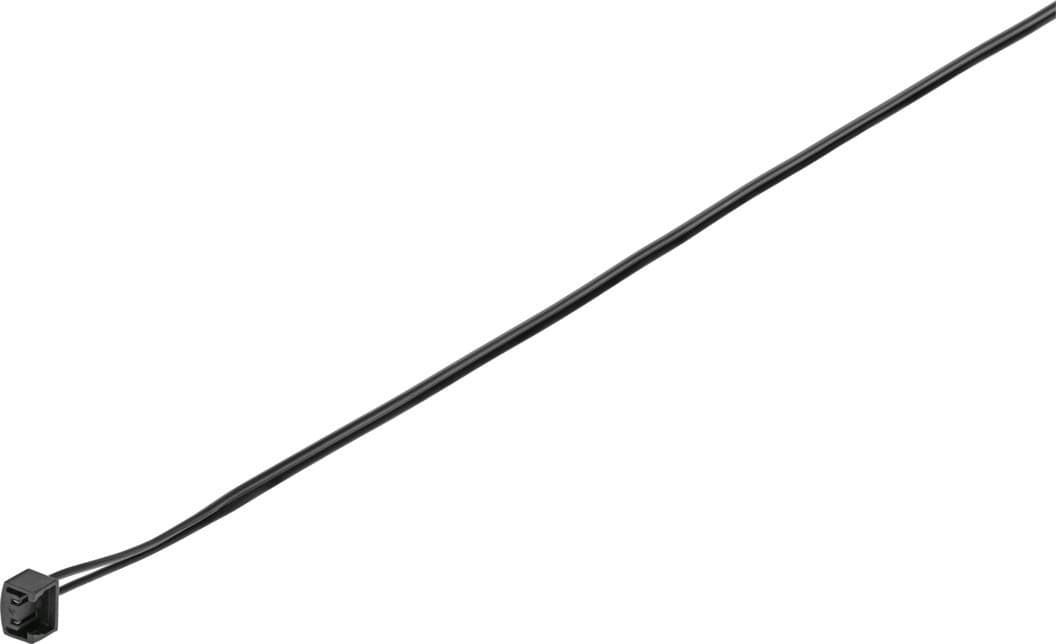

Product Model
nebv-q7g2-pd-0.1-n-le2
Selling Points
- 1Weighs only 0.5 g, ideal for lightweight applications.
- 2Supports up to 20 connections, ensuring efficient data transfer.
- 3Made with gold-plated copper alloy contacts and PVC insulation for long-lasting performance.
- 4Bending radius ≥16.5 mm for flexible cable installations, easy to maneuver in tight spaces.
- 5Meets all environmental standards, ensuring eco-friendly operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Contact durability | 20 |
Product weight | 0.5g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram Q7 |
Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
Electrical connection 1, type of mounting | Inserted | Electrical connection for input 1, connection pattern | 00997311 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Twin wire |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 0V 30V |
Current rating at 40° C | 0.3A | Surge resistance | 1.2kV |
Reverse polarity protection | no | Protective earth connection | Not available |
Shield | no | Information on operation | Only operate with external power reduction |
Cable length | 0.1m | Cable characteristic | Basic |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 11mm |
Bending radius, flexible cable installation | 16.5mm | Cable diameter | 1.1mm |
Cable design | 2 x 0.08 mm2 | Nominal conductor cross section | AWG28 |
Wire ends | Tin-plated | Degree of protection | IP40 |
Ambient temperature | 0°C 50°C | Storage temperature | -20°C 70°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 0 - No corrosion stress |
Housing material | PA-reinforced | Housing colour | Black |
Material of pin contacts | Copper alloy, gold-plated | Insulating sheath material | PVC |
Manufacturer ID | 8115892 |
Specifications may be subject to change without notice
