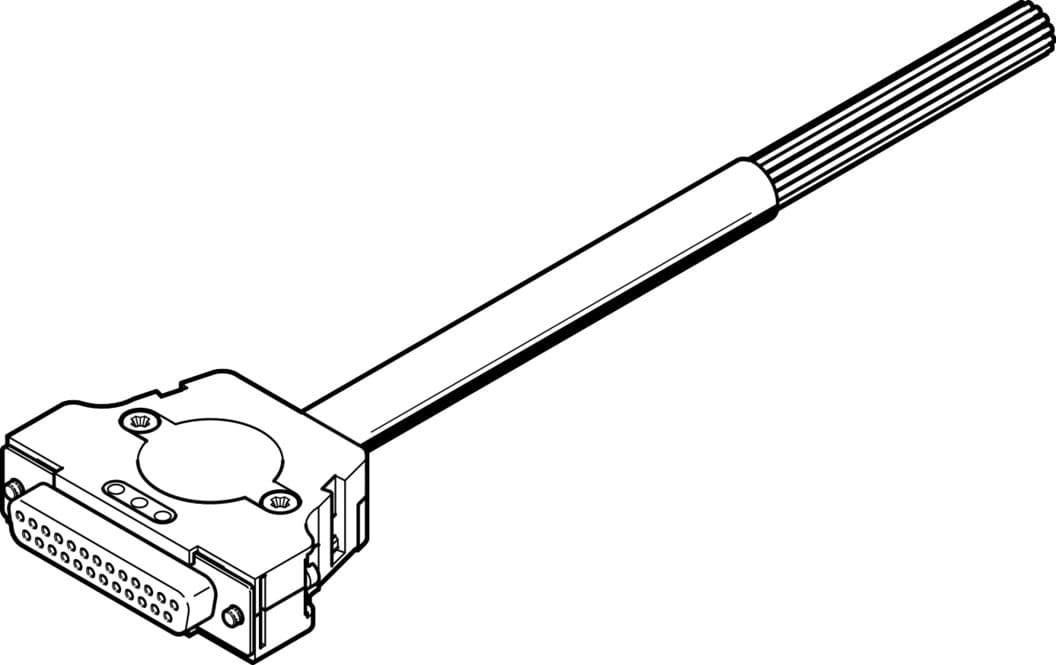

Product Model
nebv-s1g25-k-10-n-le25-s6
Selling Points
- 1Designed for field device and controller connections, ensuring stable operation in industrial settings.
- 2Built to withstand harsh environments with a bending radius of 42 mm and moving cable radius of 126 mm.
- 3Supports up to 2.6 A at 40°C, making it suitable for demanding applications.
- 4Meets environmental regulations, ensuring eco-friendliness and compliance.
- 5Constructed with PVC cable sheath, PC-reinforced housing, and nickel-plated brass screws for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | DIN 47100 | Cable designation | Without label holder |
Contact durability | 50 | Product weight | 1820g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 25 |
Electrical connection 1, occupied pins/wires | 25 | Electrical connection 1, type of mounting | 2x screw, 4-40 UNC |
Electrical connection for input 1, connection pattern | 00995642 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 25 | Electrical connection 2, occupied pins/wires | 25 |
DC operating voltage range | 0V 30V | Current rating at 40° C | 2.6A |
Surge resistance | 2.4kV | Reverse polarity protection | yes |
Cable length | 10m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 42mm |
Bending radius, flexible cable installation | 126mm | Cable diameter | 10.2mm |
Cable diameter tolerance | ± 0.25 mm | Cable design | 25 x 0.34 mm2 |
Nominal conductor cross section | 0.34mm2 | Wire ends | Cut off bluntly |
Degree of protection | IP40 | Note on degree of protection | In mounted state |
Ambient temperature | -35°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
Storage temperature | -25°C 75°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 2 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
Color cable sheath | Gray | Housing material | PC-reinforced |
Housing colour | Black | Material of screws | Brass, nickel-plated |
Material of pin contacts | Bronze Gold-plated | Insulating sheath material | PVC |
Manufacturer ID | 575419 |
Specifications may be subject to change without notice
