Product Model
nebv-s1g25-k-5-n-le15
Selling Points

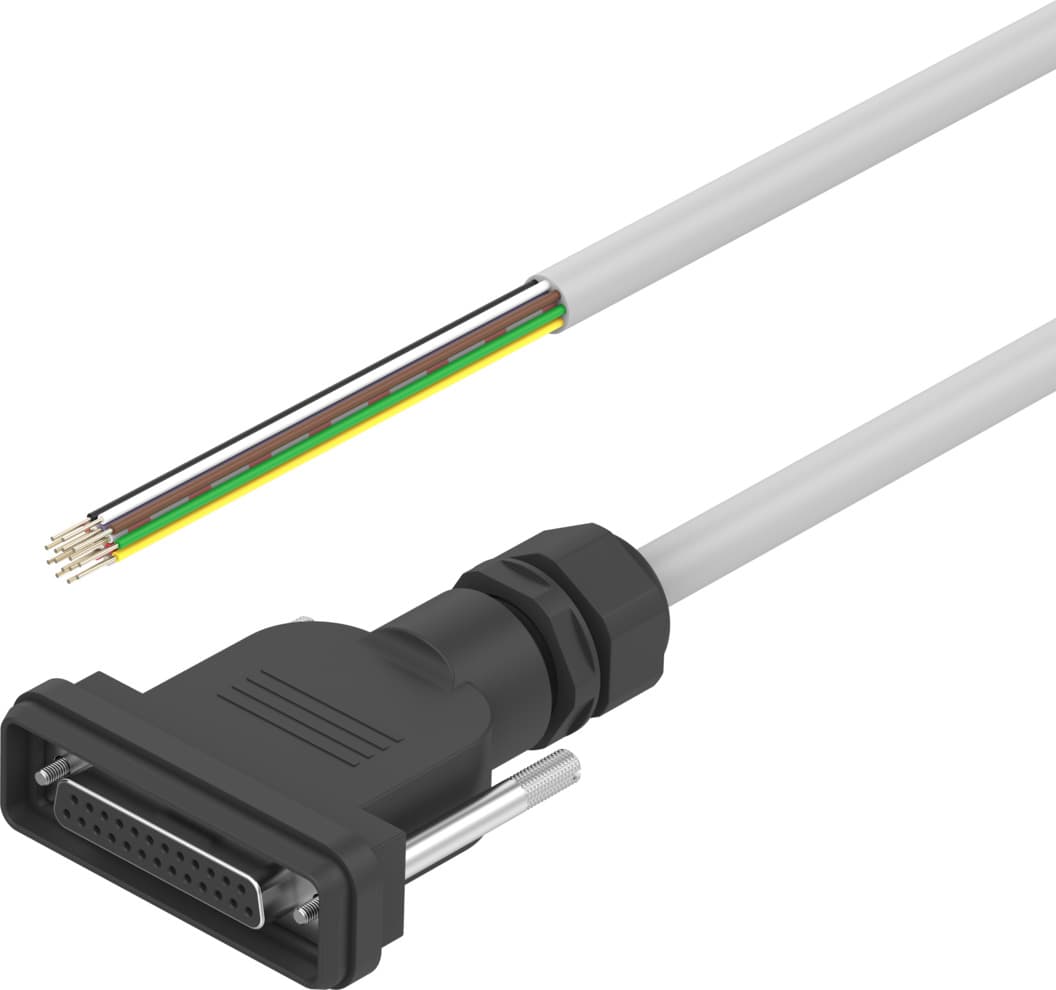

- 1The NEBV-S1G25-K-5-N-LE15 connecting cable from Festo is designed to provide reliable electrical connections in industrial settings. It features a 25-pin Sub-D socket and a 15-wire open end for versatile connectivity options.
- 2With a cable diameter of 5mm and a standard cable structure, this connecting cable is built to withstand the demands of industrial environments. It also meets IP65 and IP67 protection standards for dust and water resistance.
- 3The NEBV-S1G25-K-5-N-LE15 can be easily mounted using the 4-40 UNC-2B type of mounting, making it adaptable to various installation requirements. This ensures a secure and stable connection in your system.
- 4This connecting cable is RoHS-compliant and meets the EU RoHS Directive, ensuring it is environmentally friendly and safe for use in industrial settings. It also carries the CE mark for conformity to EU safety standards.
- 5With a nominal operating voltage of 24V DC and an ambient temperature range of -5°C to 50°C, the NEBV-S1G25-K-5-N-LE15 is perfect for use in a variety of industrial applications where reliability and performance are crucial.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | 4-40 UNC-2B | Product weight | 670g |
Electrical connection 1 | Sub-D socket, 25-pin | Electrical connection 2 | Open end, 15-wire |
Nominal operating voltage DC | 24V | Cable length | 5m |
Cable characteristic | Standard | Min. cable bending radius | 90mm |
Cable diameter | 9mm | Cable design | 15 x 0.34 mm2 |
Degree of protection | IP65 IP67 In mounted state | Ambient temperature with flexible cable installation | -5°C 50°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | PVC |
Housing material | PBT | Material of union nut | PA |
Seals material | TPE-O | Manufacturer ID | 538223 |
Specifications may be subject to change without notice
