Product Model

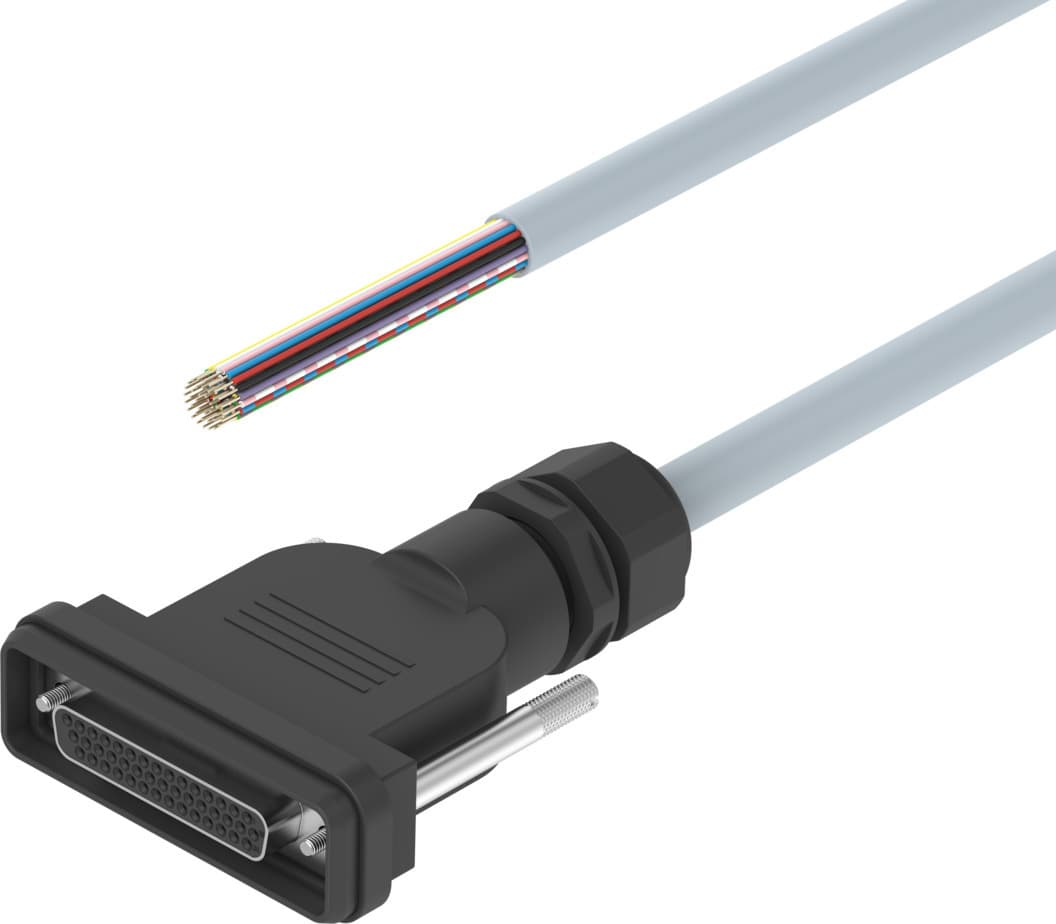

nebv-s1g44-k-5-n-le39
Selling Points
- 1Built with high-quality materials, including PVC cable sheath and PC-reinforced housing, ensuring long-lasting performance.
- 2Features a 44-pin Sub-D socket with a straight cable outlet, providing secure and reliable electrical connections.
- 3Compatible with any mounting position using 4-40 UNC screws, offering flexibility in installation.
- 4Supports an acceptable current load of 0.86 A at 40°C, suitable for demanding industrial applications.
- 5Meets EU RoHS Directive and IP65/IP67 protection standards, ensuring environmental compliance and robust protection against dust and water.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | 4-40UNC | Mounting position | Any |
Product weight | 737g | Electrical connection | 44-pin Socket Sub-D |
DC operating voltage range | 30V | Current rating at 40° C | 0.86A |
Cable length | 5m | Cable characteristic | for static applications |
Min. cable bending radius | 95mm | Cable diameter | 9.6mm |
Cable diameter tolerance | ± 0.5 mm | Cable design | 40 x 0.14 mm2 |
Degree of protection | IP65 IP67 In mounted state | Ambient temperature | -5°C 60°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | PVC |
Housing material | PBT | Material of pin contacts | Bronze Gold-plated |
Manufacturer ID | 565290 |
Specifications may be subject to change without notice
