Product Model

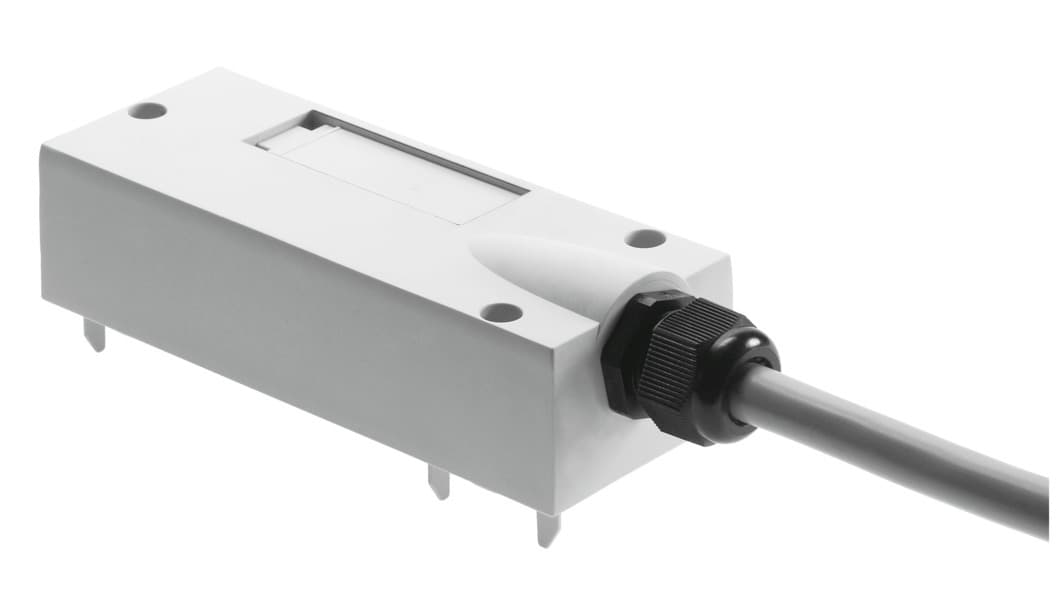

nebv-s1w37-e-5-le10
Selling Points
- 1Pre-assembled and Versatile: The NEBV-S1W37-E-5-LE10 is a pre-assembled connecting cable designed for multi-pin plug connections, available in various pin configurations (10-pin, 26-pin, 27-pin, and 37-pin) to meet diverse application needs.
- 2Suitable for Energy Chains: This cable is specifically designed to be used with energy chains, ensuring reliable and efficient transmission of signals in industrial settings.
- 3Indoor Applications: The NEBV-S1W37-E-5-LE10 is suitable for indoor applications where condensation may occur, with a corrosion resistance class of CRC 2 to Festo standard FN 940070.
- 4High-Quality Materials: Constructed with high-quality materials, including polyamide housing and polyurethane or polyvinyl chloride cable sheath, ensuring durability and resistance to environmental factors.
- 5Easy Installation: The cable features an angled outlet on the field device side and an open end on the controller side, making it easy to install and connect to valve terminals VTSA and VTSA-F.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Area of application | Only for multi-pin connection of valve manifold VTSA/VTSA-F | Conforms to standard | DIN 47100 |
Cable designation | With label holder | Product weight | 563.2g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 37 |
Electrical connection 1, occupied pins/wires | 10 | Electrical connection 1, type of mounting | 3x M4 screw |
Electrical connection for input 1, connection pattern | 00995644 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 10 | Electrical connection 2, occupied pins/wires | 10 |
DC operating voltage range | 0V 30V | Current rating at 40° C | 2A |
Surge resistance | 1kV | Cable length | 5m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 30mm | Bending radius, flexible cable installation | 74mm |
Cable diameter | 7.4mm | Cable design | 10 x 0.34 mm2 |
Nominal conductor cross section | 0.34mm2 | Degree of protection | IP65 NEMA 4 |
Note on degree of protection | In mounted state | Ambient temperature | -5°C 50°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | PA |
Insulating sheath material | PVC | Manufacturer ID | 539241 |
Specifications may be subject to change without notice
