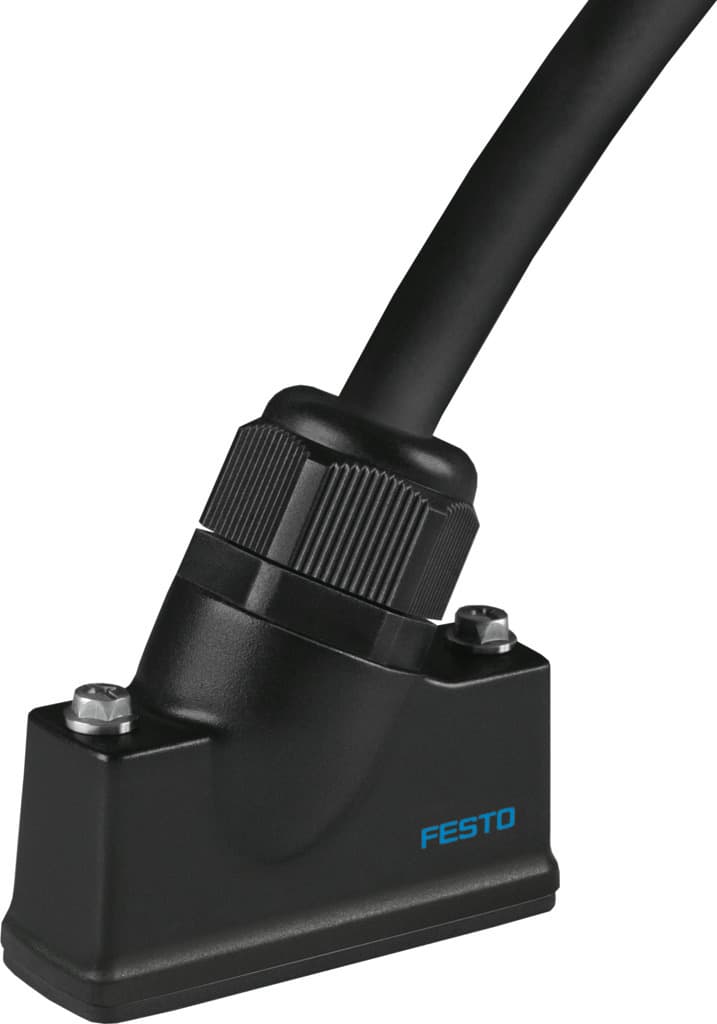

Product Model
nebv-s1wa25-k-5-n-le25-s9
Selling Points
- 125-pin Sub-D plug socket for reliable electrical connections
- 25-meter cable length for extended reach in industrial settings
- 3IP65/IP67 protection for durability in harsh environments
- 4Operating voltage range up to 30V DC, suitable for various applications
- 5Moderate corrosion stress rating (CRC 2) for long-lasting performance
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | DIN 47100 | Cable designation | Without label holder |
Contact durability | 50 | Product weight | 950g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 25 |
Electrical connection 1, occupied pins/wires | 25 | Electrical connection 1, type of mounting | 2x screw, 4-40 UNC |
Electrical connection for input 1, connection pattern | 00995642 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 25 | Electrical connection 2, occupied pins/wires | 25 |
DC operating voltage range | 0V 30V | Current rating at 40° C | 2.6A |
Surge resistance | 2.4kV | Reverse polarity protection | yes |
Cable length | 5m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 42mm |
Bending radius, flexible cable installation | 126mm | Cable fitting | M20x1.5 |
Cable diameter | 10.2mm | Cable diameter tolerance | ± 0.25 mm |
Cable design | 25 x 0.34 mm2 | Nominal conductor cross section | 0.34mm2 |
Wire ends | Cut off bluntly | Degree of protection | IP65 IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -35°C 80°C |
Ambient temperature with flexible cable installation | -5°C 80°C | Storage temperature | -35°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | PVC | Color cable sheath | Gray |
Housing material | PA66-GF30 | Housing colour | Black |
Material of screws | Steel | Seals material | NBR |
Material of pin contacts | Bronze Gold-plated | Insulating sheath material | PVC |
Manufacturer ID | 575424 |
Specifications may be subject to change without notice
