Product Model

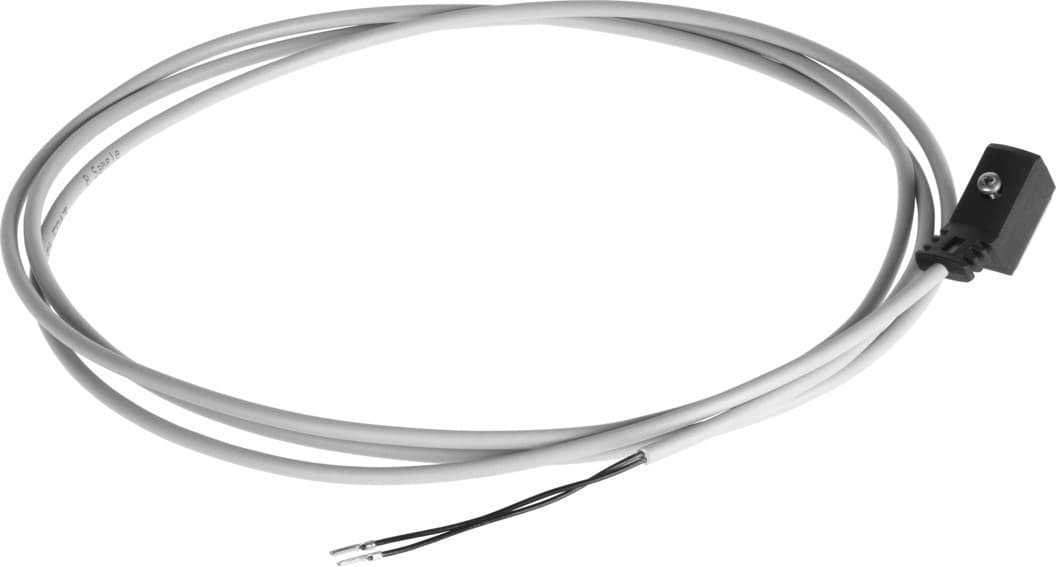

nebv-z3wa2l-r-e-2.5-n-le2-s1
Selling Points
- 1Yellow LED Signal Status Display: Real-time monitoring with a clear yellow LED indicator.
- 2Reduction of Holding Current: Efficiently reduces holding current for optimal performance.
- 3Protective Circuit: Ensures safety with built-in protective circuitry.
- 4Angled Cable Outlet: Convenient angled design for easy installation.
- 5Self-Tapping Screw Connection: Secure and easy-to-use connection technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) | ATEX category gas | II 3G |
Type of ignition protection for gas | Ex ec IIC Gc X | Explosion protection certification outside the EU | EPL Gc (GB) |
Signal status display | LED yellow | Additional functions | Holding current reduction Protective circuit |
Cable designation | Without label holder | Contact durability | 50 |
Product weight | 50g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram ZC, self-tapping screw |
Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
Electrical connection 1, type of mounting | On air solenoid valve with self-tapping screw | Electrical connection for input 1, connection pattern | 00995625 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 20.4V 26.4V |
Nominal operating voltage DC | 24V | Surge resistance | 2.4kV |
Reverse polarity protection | Bipolar | Protective earth connection | Not available |
Cable length | 2.5m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, flexible cable installation | 29mm |
Cable diameter | 2.9mm | Cable diameter tolerance | ± 0.1 mm |
Cable design | 2 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -10°C 50°C | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | TPE-U(PU) |
Housing colour | Black | Material of screws | Steel |
Material of pin contacts | Copper alloy, tin-plated | Insulating sheath material | PP |
Manufacturer ID | 8047676 |
Specifications may be subject to change without notice
