Product Model

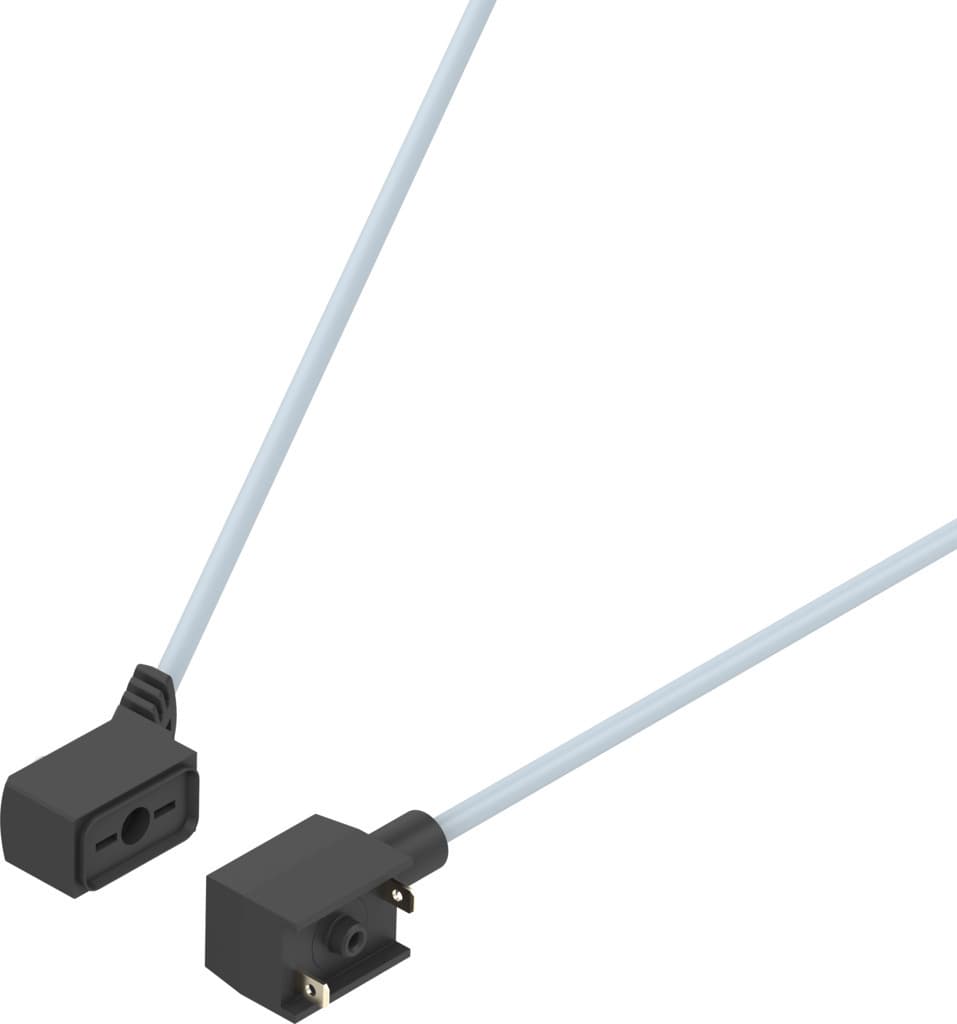

nebv-z4wa2-e-0.2-n-z1w2-s1
Selling Points
- 1Resistant to high corrosion stress and suitable for harsh environments.
- 2Ensures reliable operation in various conditions, including dust and water.
- 3Conveniently designed for easy installation on solenoid valves.
- 4Compliant with EU and UK regulations, ensuring safety and quality.
- 5Protects against voltage surges up to 2.4 kV, ensuring stable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Contact durability | 50 |
Product weight | 18g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram ZC, metric screw |
Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
Electrical connection 1, type of mounting | On air solenoid valve with M2 central screw | Electrical connection for input 1, connection pattern | 00995625 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Rectangular |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Angled |
Electrical connection 2, connection technology | Connection diagram ZB, self-tapping screw | Electrical connection 2, number of pins/wires | 2 |
Electrical connection 2, occupied pins/wires | 2 | Electrical connection 2, type of mounting | On air solenoid valve with self-tapping screw |
Electrical connection 2, connection pattern | 00995712 | DC operating voltage range | 0V 30V |
Nominal operating voltage DC | 24V | Surge resistance | 2.4kV |
Reverse polarity protection | Bipolar | Protective earth connection | Not available |
Cable length | 0.2m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, flexible cable installation | 29mm |
Cable diameter | 2.9mm | Cable diameter tolerance | ± 0.1 mm |
Cable design | 2 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -10°C 50°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | TPE-U(PU) |
Housing colour | Black | Material of screws | Stainless steel |
Material of pin contacts | Copper alloy, tin-plated | Insulating sheath material | PP |
Manufacturer ID | 8047681 |
Specifications may be subject to change without notice
