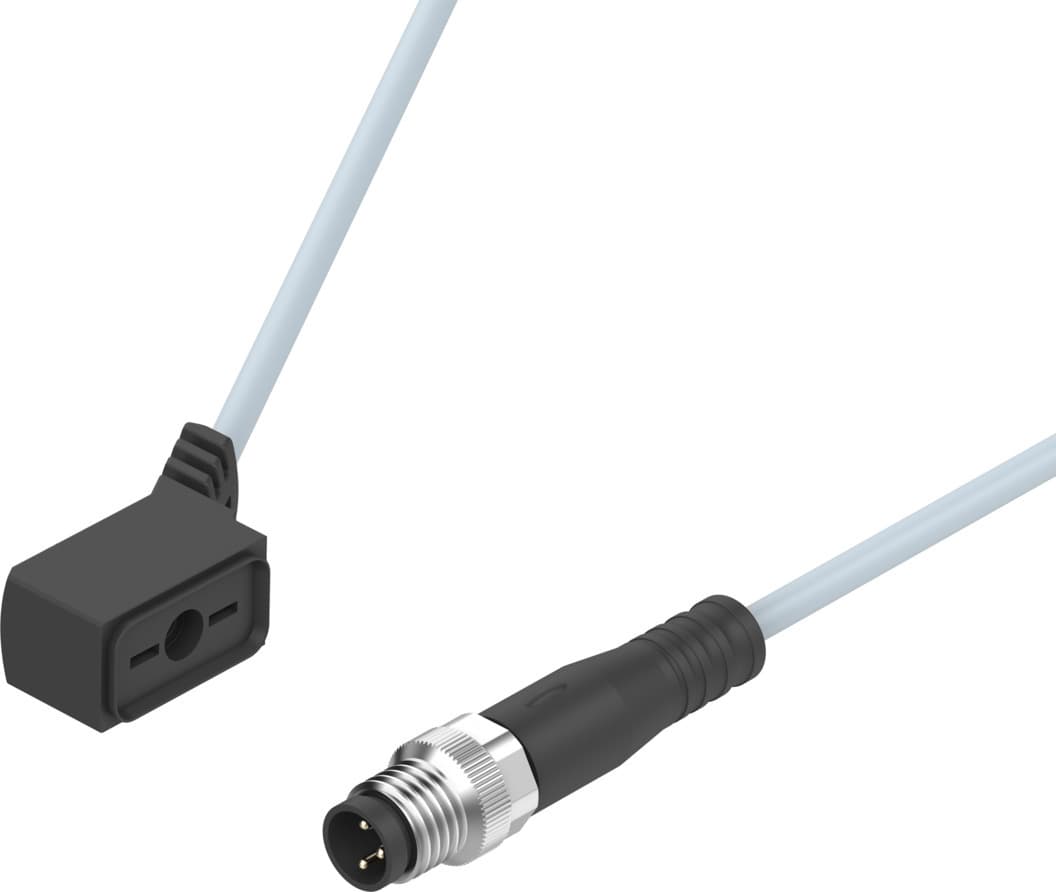

Product Model
nebv-z4wa2l-r-e-0.5-n-m8g3-s1
Selling Points
- 1Yellow LED indicator for easy monitoring of cable status.
- 2Reduces holding current and includes a protective circuit for enhanced safety.
- 3No inscription label holder for clean and organized installations.
- 4Designed for 50 Hz frequency applications.
- 5Angled cable outlet with a 2-pin left connection and M8 plug on the right.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal status display | LED yellow | Additional functions | Holding current reduction Protective circuit |
Cable designation | Without label holder | Contact durability | 50 |
Product weight | 18g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram ZC, metric screw |
Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
Electrical connection 1, type of mounting | On air solenoid valve with M2 central screw | Electrical connection for input 1, connection pattern | 00995625 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 2, number of pins/wires | 3 |
Electrical connection 2, occupied pins/wires | 2 | Electrical connection 2, connection pattern | 00991974 |
DC operating voltage range | 20.4V 26.4V | Nominal operating voltage DC | 24V |
Surge resistance | 2.4kV | Reverse polarity protection | Bipolar |
Protective earth connection | Not available | Cable length | 0.5m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, flexible cable installation | 29mm | Cable diameter | 2.9mm |
Cable diameter tolerance | ± 0.1 mm | Cable design | 2 x 0.14 mm2 |
Nominal conductor cross section | 0.14mm2 | Degree of protection | IP65 |
Note on degree of protection | In mounted state | Ambient temperature | -10°C 50°C |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 3 - High corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PU) | Housing colour | Black |
Material of union nut | Brass, nickel-plated | Material of screws | Stainless steel |
Material of pin contacts | Copper alloy, tin-plated Brass, gold-plated | Insulating sheath material | PP |
Manufacturer ID | 8047683 |
Specifications may be subject to change without notice
