Product Model

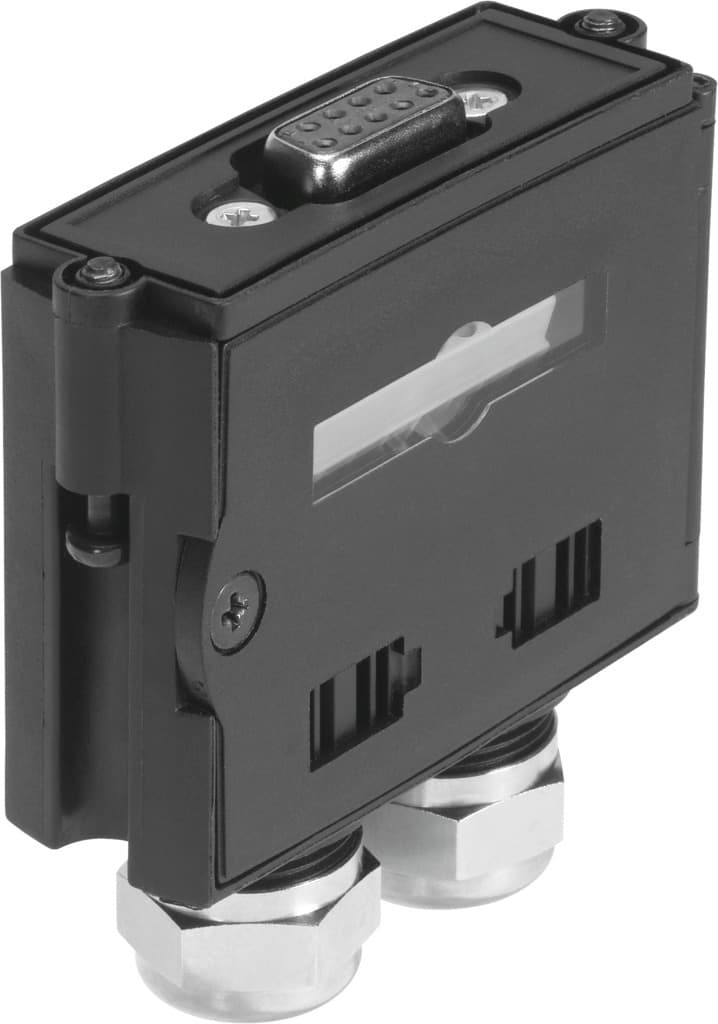

neca-s1g9-p9-mp5
Selling Points
- 1Versatile Electrical Connections: Features a 9-pin D-sub socket and a 9-pin screw terminal for versatile electrical connections.
- 2Wide Operating Voltage Range: Compatible with DC operating voltages between 21.6V and 26.4V, ensuring broad application suitability.
- 3Compact Design: Lightweight at 60g, making it easy to integrate into various systems without adding bulk.
- 4High Corrosion Resistance: Classified as CRC 2, offering moderate corrosion resistance for reliable performance in harsh environments.
- 5Durable Construction: Built with PA-reinforced housing, brass union nut, steel screws, and NBR seals for long-lasting durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | With through-hole | Product weight | 60g |
Electrical connection 1 | Socket, Sub-D, 9-pin | Electrical connection 2 | Screw terminal, 9-pin |
DC operating voltage range | 21.6V 26.4V | Nominal operating voltage DC | 24V |
Current rating at 40° C | 1A | Approved cable diameter | 5mm 10mm |
Connection cross section | 0.34mm2 1mm2 | Information on port cross section | 0.34–0.5 mm2 when using cable end sleeves |
Degree of protection | IP65 as per IEC 60529 | Ambient temperature | 0°C 50°C |
Storage temperature | -20°C 70°C | Relative air humidity | 95 % Non-condensing |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Housing material | PA-reinforced | Material of union nut | Brass |
Material of screws | Steel | Seals material | NBR |
Manufacturer ID | 573695 |
Specifications may be subject to change without notice
