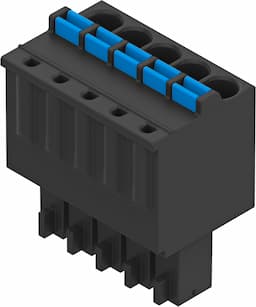

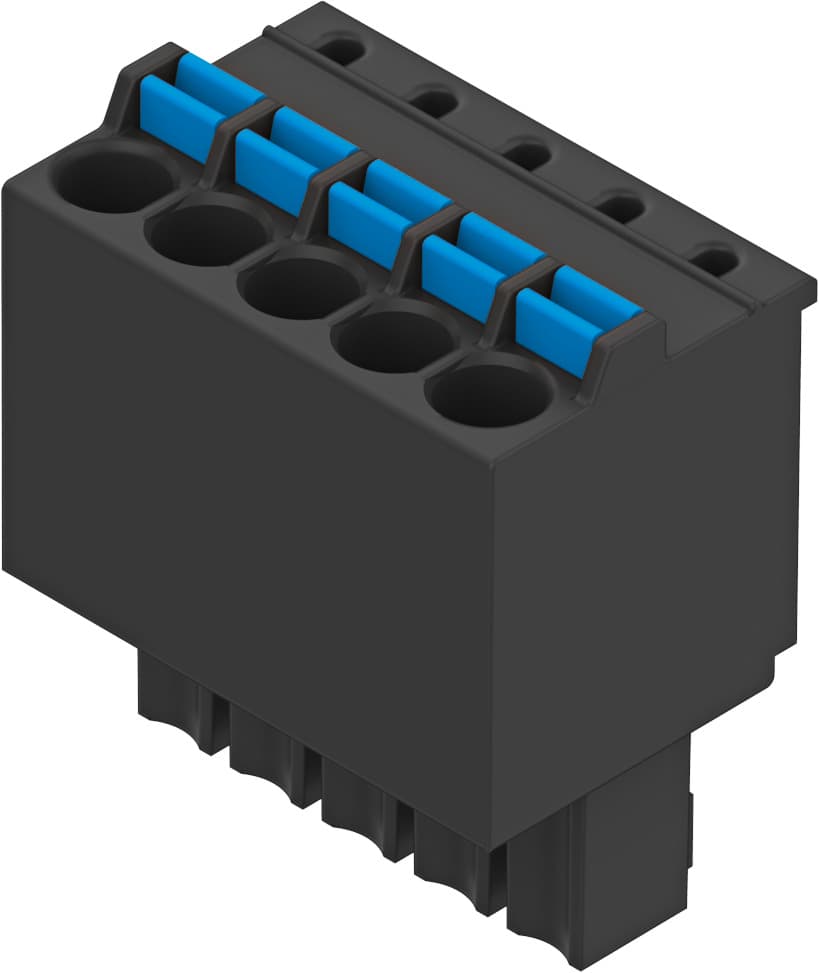

Product Model
necc-l8g5-c1
Selling Points
- 1Designed for reliable and efficient electrical connections.
- 2Constructed with PA housing for long-lasting performance.
- 3Classified as CRC 1, ensuring minimal corrosion impact.
- 4Suitable for a wide range of industrial applications.
- 5Features spring-loaded terminals for simple and secure mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable outlet | Straight | Product weight | 3.8g |
Pack size | 1 | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram L8 |
Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, type of mounting | Inserted |
Electrical connection for input 1, connection pattern | 00997297 | Electrical connection 2, connection technology | Spring-loaded terminal |
DC operating voltage range | 0V 300V | Current rating at 40° C | 8A |
Surge resistance | 1.6kV | Shield | no |
Nominal conductor cross section | AWG28 - 16 | Degree of protection | IP20 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 115°C |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA |
Housing colour | Black | Manufacturer ID | 8106756 |
Specifications may be subject to change without notice
