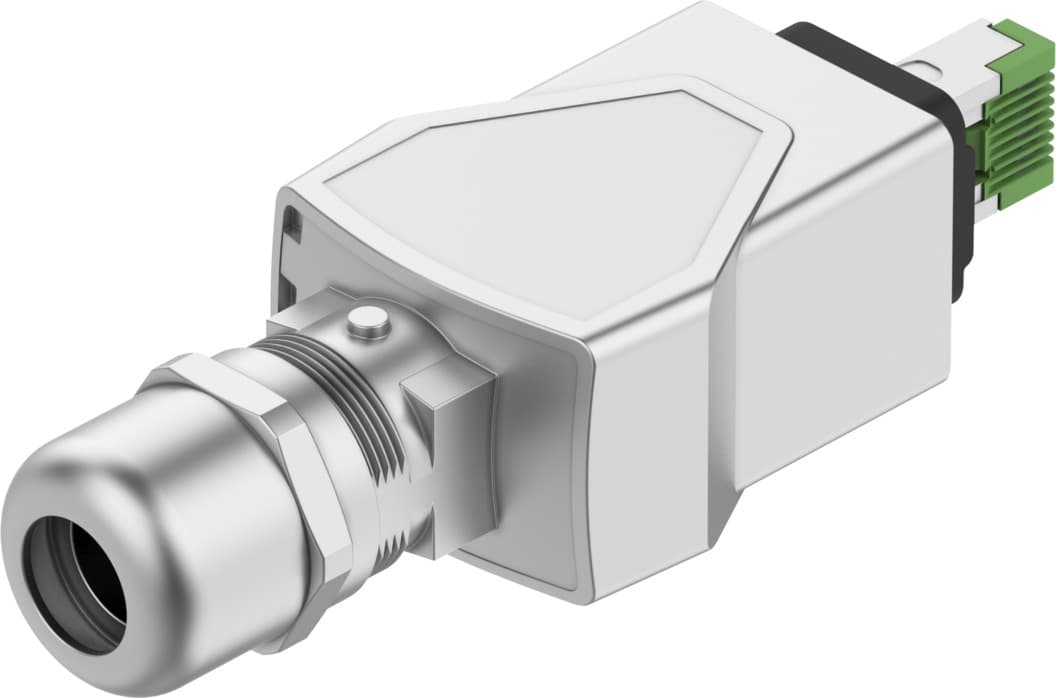

Product Model
necc-m-s-r3g8pp-hx-pn
Selling Points
- 1The Festo NECC-M-S-R3G8PP-HX-PN is a high-quality plug designed for industrial applications, ensuring reliable performance in demanding environments.
- 2This plug features a PROFINET connection, supporting AWG 22 – 23 and adhering to TIA-568A and TIA-568B standards for seamless integration.
- 3The NECC-M-S-R3G8PP-HX-PN is engineered with a robust design, providing a secure and durable connection for your industrial systems.
- 4The plug is available in various configurations, including BN and BU options, ensuring flexibility in your installation needs.
- 5With a weight of 0.090 kg, the NECC-M-S-R3G8PP-HX-PN is lightweight yet robust, making it easy to handle and install.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protocol | Ethernet PROFINET | Additional functions | Meets AIDA requirements |
Contact durability | 750 | Cable outlet | Straight |
Product weight | 90g | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Plug | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | RJ45 | Electrical connection 1, number of pins/wires | 8 |
Electrical connection 1, occupied pins/wires | 8 | Electrical connection 1, type of mounting | Push-pull with interlock to prevent unintentional pulling |
Electrical connection for input 1, connection pattern | 00995653 | Electrical connection 2, connection technology | Insulation displacement connector |
DC operating voltage range | 50V | Nominal operating voltage DC | 50V |
Current rating at 40° C | 1.75A | Surge resistance | 1.5kV |
Shield | 360° possible | Transmission characteristics | Category 5 according to ISO/IEC 11801 Category 5 according to TIA/EIA-568B |
Protection against direct and indirect contact | PELV | Cable fitting | Pg11 hex A/F 20 |
Cable diameter | 5.5mm 10mm | Wire diameter | 1.6mm |
Nominal conductor cross section | AWG22 AWG23 | Information on port cross section | 0.25 – 0.32 mm2 for conductor 1-wire |
Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 70°C | Storage temperature | -40°C 70°C |
LABS (PWIS) conformity | VDMA24364-A1-L | Note on materials | RoHS-compliant |
Fire tested | UL94 V-0 | Contamination level | 2 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | Die-cast zinc, nickel-plated |
Housing colour | Silver | Seals material | NBR TPE-V |
Material of pin contacts | Copper alloy, nickel-plated and gold-plated | Permissible insulating sheath | PP PUR PVC |
Manufacturer ID | 5195384 |
Specifications may be subject to change without notice
