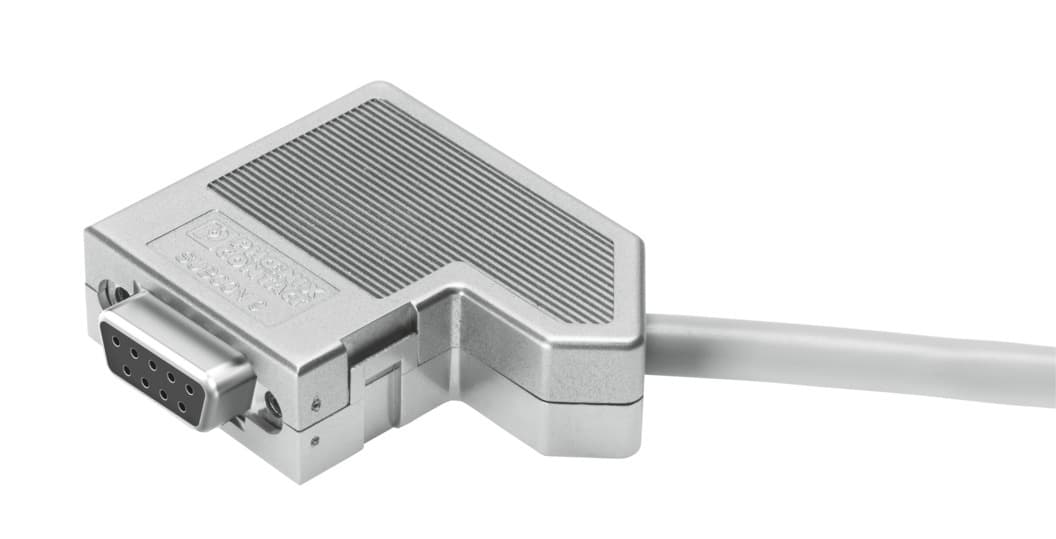

Product Model
necc-s1g9-c2-m
Selling Points
- 1Compact design with 39.4 mm height and 58 mm length.
- 2Sub-D, 9-pin socket field bus interface for efficient communication.
- 324G product weight for easy handling and installation.
- 4IP40 degree of protection against dust and water.
- 5Compliant with EU Low Voltage Directive and RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Height | 39.4 mm | Length | 58 mm |
Product weight | 24g | Fieldbus interface | Sub-D, 9-pin, socket |
Electrical connection | 9-pin/9-pin Sub-D/screw terminal | Baud rate | 1 Mbit/s |
Approved cable diameter | 8mm | Degree of protection | IP40 |
Ambient temperature | -20°C 70°C | CE marking (see declaration of conformity) | As per EU low voltage directive |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Manufacturer ID | 576031 |
Specifications may be subject to change without notice
