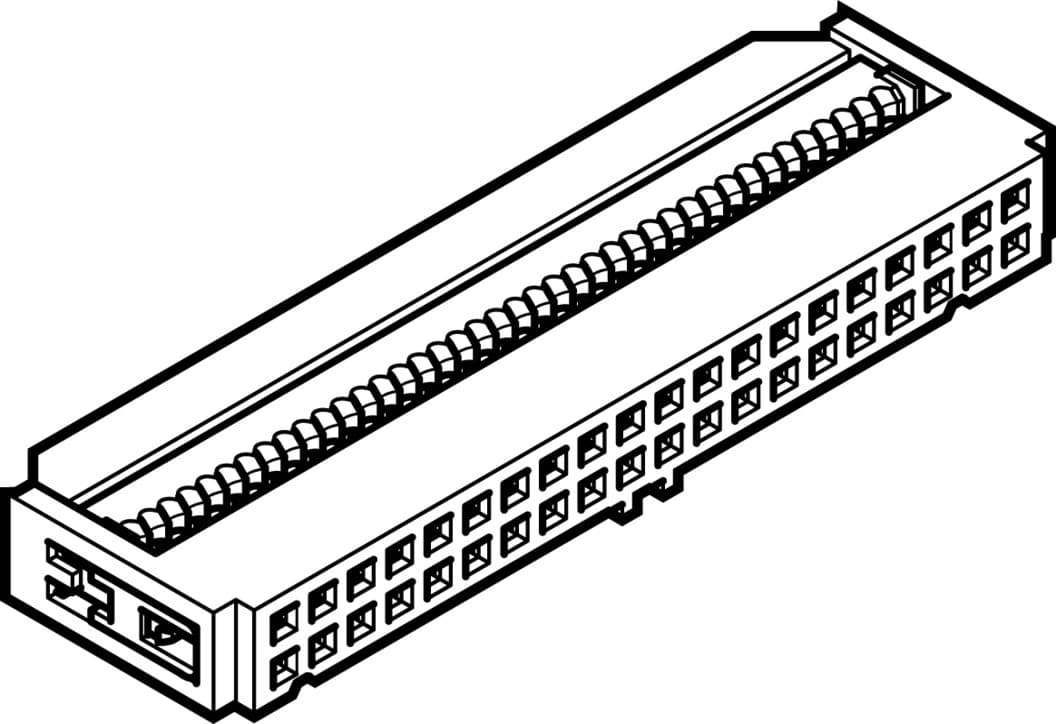

Product Model
necu-fcg40-k
Selling Points
- 1IP40 Protection: Ensures a safe and reliable electrical connection.
- 20-30V DC Operating Voltage: Compatible with a wide range of DC voltage applications.
- 3PBT-Reinforced Housing: Durable and resistant to corrosion.
- 4Compliant with EN 60603-13: Meets international standards for electrical connectors.
- 5Angular Design: Provides easy access and secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60603-13 | Contact durability | 50 |
Cable outlet | Straight | Product weight | 5g |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, connection technology | Connection diagram FC | Electrical connection 1, number of pins/wires | 40 |
Electrical connection 1, type of mounting | Snap-locking | Electrical connection 2, connection technology | Insulation displacement connector |
DC operating voltage range | 0V 30V | Current rating at 40° C | 1.5A |
Nominal conductor cross section | AWG26 | Degree of protection | IP40 |
Ambient temperature | -5°C 50°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 0 - No corrosion stress |
Housing material | PBT-reinforced | Material of pin contacts | Bronze Gold-plated |
Manufacturer ID | 570895 |
Specifications may be subject to change without notice
