Product Model
necu-g78g4-c2
Selling Points

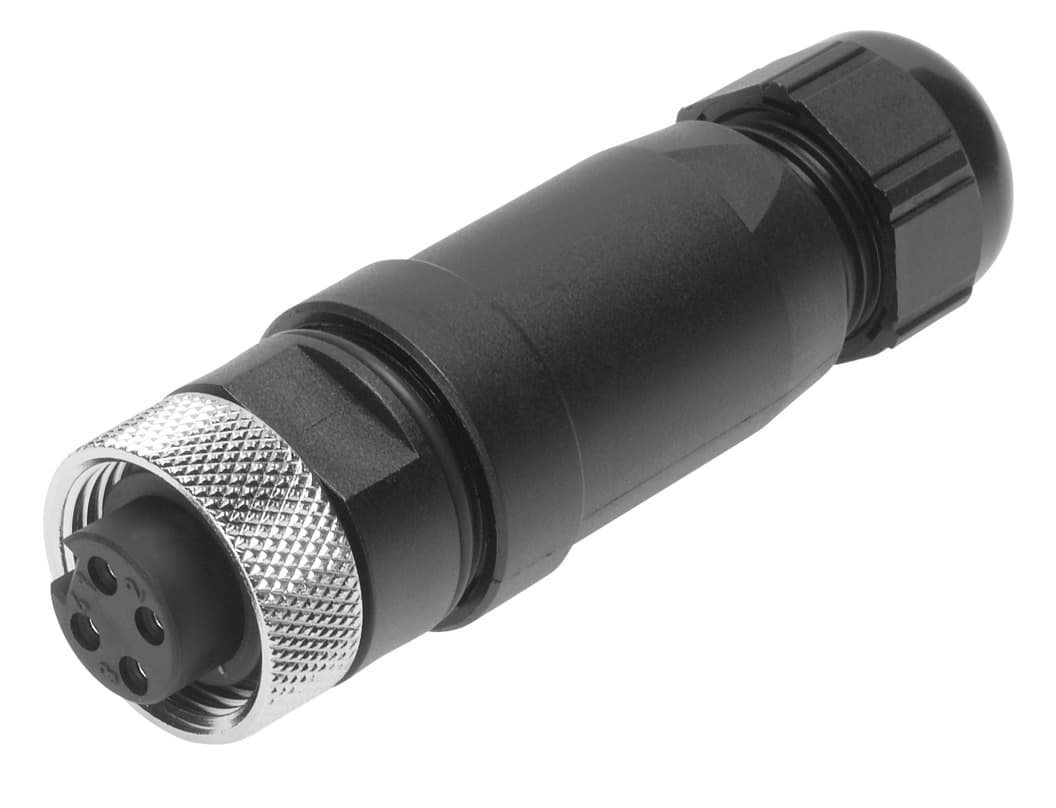

- 1The NECU-G78G4-C2 is a reliable power supply socket designed for modular electrical terminals, ensuring secure and efficient connections.
- 2Meets the international standard EN 61984 for electrical connectors, ensuring high-quality and safety standards.
- 3Compatible with cable diameters ranging from 6 mm to 12 mm, providing flexibility in various applications.
- 4Supports both AC and DC operating voltages up to 250 V, making it suitable for a wide range of electrical systems.
- 5Built with a product weight of 58.7 g and featuring a straight socket with a 7/8" diameter, ensuring durability and ease of use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Certification | c CSA us (OL) |
Product weight | 58.7g | Electrical connection 1 | Straight socket, 7/8", 4-pin |
Plug coding | ODVA AutoSIG | Electrical connection 2 | Screw terminal |
DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
Current rating at 40° C | 10A | Surge resistance | 2.5kV |
Approved cable diameter | 6mm 12mm | Connection cross section | 1.5mm2 |
Degree of protection | IP67 | Ambient temperature | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | PA | Housing colour | Black |
Material of union nut | Die-cast zinc, nickel-plated | Seals material | FPM NBR |
Material of pin contacts | Copper alloy, gold-plated | Manufacturer ID | 543108 |
Specifications may be subject to change without notice
