Product Model
necu-g78g5-c2
Selling Points

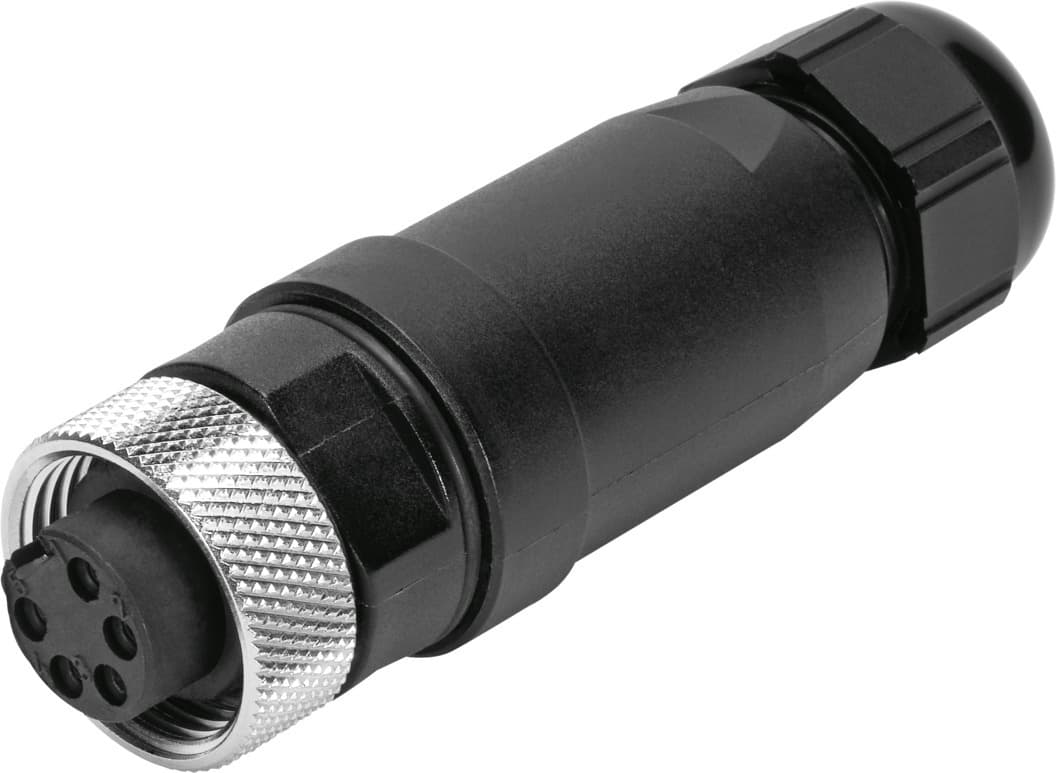

- 1The Festo NECU-G78G5-C2 power supply socket features a 5-pin 7/8" straight socket, ensuring secure and reliable electrical connections.
- 2Compliant with EN 61984 and CSA US standards, this socket guarantees high-quality performance in various industrial applications.
- 3With an operational voltage range of 0 to 250 V DC and AC, this socket is versatile for different power supply needs.
- 4The NECU-G78G5-C2 has a surge voltage strength of 2.5 kV, providing immunity to electrical surges and ensuring long-lasting performance.
- 5Made from RoHS-compliant materials, including PA housing and gold-plated copper alloy electrical contacts, this socket is environmentally friendly and durable.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Certification | c CSA us (OL) |
Product weight | 50g | Electrical connection 1 | Straight socket, 7/8", 5-pin |
Plug coding | NFPA/T3.5.29 R1-2003 | Electrical connection 2 | Screw terminal |
DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
Current rating | 8A | Surge resistance | 2.5kV |
Approved cable diameter | 6mm 12mm | Connection cross section | 1.5mm2 |
Degree of protection | IP67 | Ambient temperature | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | PA | Housing colour | Black |
Material of union nut | Die-cast zinc, nickel-plated | Seals material | FPM NBR |
Material of pin contacts | Copper alloy, gold-plated | Manufacturer ID | 543107 |
Specifications may be subject to change without notice
