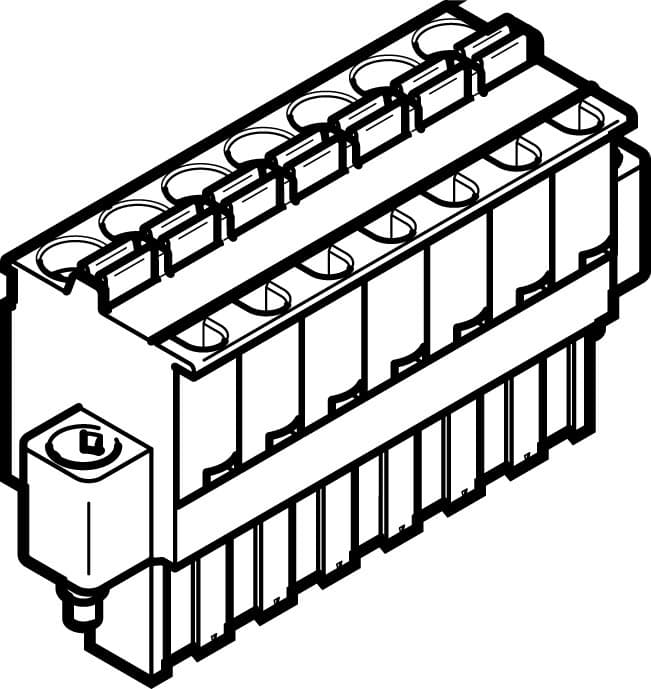

Product Model
necu-l3g7-c1
Selling Points
- 1Withstands up to 100 switching cycles, ensuring reliable electrical connections.
- 2Can be mounted in any position, providing flexibility in installation.
- 37-pin spring-loaded terminal for secure and efficient electrical connections.
- 4Compatible with DC operating voltage range of 0 V to 30 V.
- 5c UL us-listed (OL) and RoHS-compliant, meeting stringent safety and environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Certification | c UL us - Listed (OL) | Contact durability | 100 |
Mounting position | Any | Product weight | 12.8g |
Electrical connection | 7-pin Spring-loaded terminal Plug, straight | DC operating voltage range | 0V 30V |
Current rating at 40° C | 12A | Surge resistance | 4kV |
Connection cross section | 0.2mm2 2.5mm2 | Ambient temperature | -40°C 85°C |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Housing material | PA | Housing colour | Black |
Material of pin contacts | Copper alloy Tin-plated | Manufacturer ID | 576319 |
Specifications may be subject to change without notice
