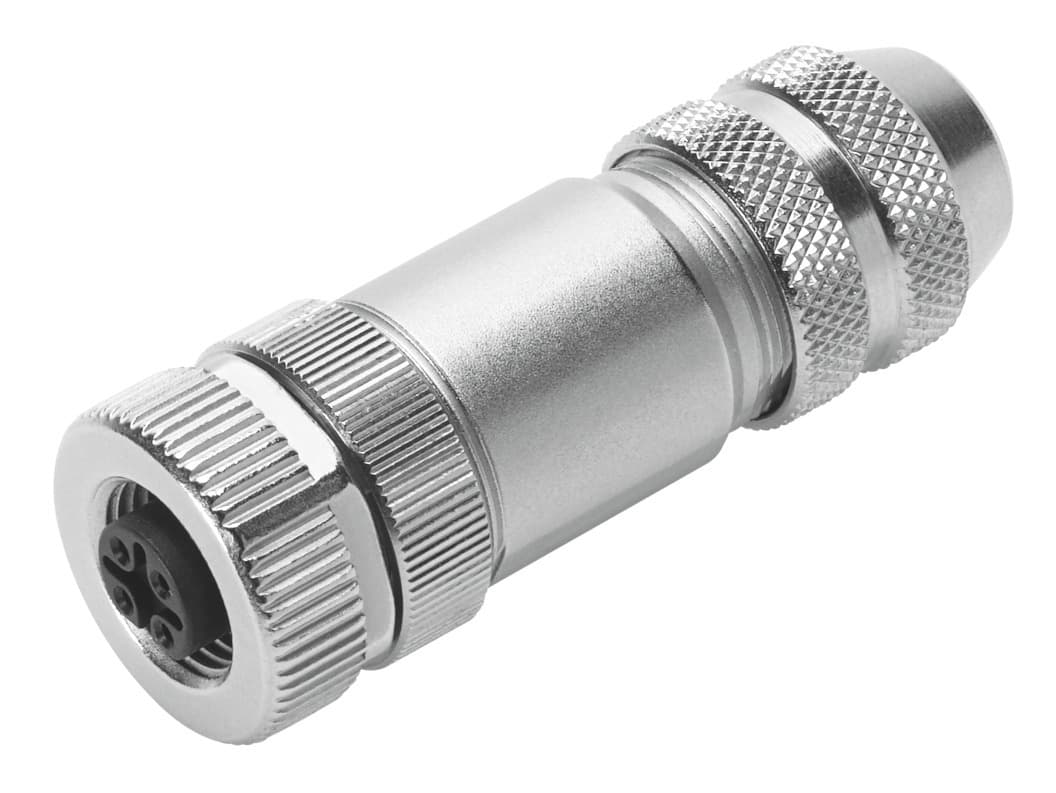

Festo NECU-M-B12G5-C2-PB Plug Connector - High-Quality Electrical Connection

Selling Points

1The NECU-M-B12G5-C2-PB plug connector from Festo is designed to meet the standards of EN 61076-2-101 and EN 61984, ensuring high-quality and reliable electrical connections in industrial automation applications.
2This plug connector features a straight socket with a M12x1, 5-pin, B-coded, shieldable connection, making it versatile and easy to integrate into various systems.
3With a current rating of 0.166666666666667 A at 40°C and a surge resistance of 1.5 kV, the NECU-M-B12G5-C2-PB is built to withstand demanding electrical conditions.
4The connector is available in a range of cable diameters from 6 mm to 8 mm and supports connection cross sections from 0.14 mm² to 0.75 mm², providing flexibility in cable selection.
5The NECU-M-B12G5-C2-PB is IP67 rated, ensuring protection against dust and water, and is CE marked as per the EU low voltage directive, making it compliant with stringent safety standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Based on norm	EN 61076-2-101 EN 61984	Product weight	48.7g
Electrical connection 1	Straight socket, M12x1, 5-pin, B-coded, shieldable	Plug coding	B
Electrical connection 2	Screw terminal, can be shielded	DC operating voltage range	0V 125V
Operating voltage range AC	0V 125V	Current rating at 40° C	4A
Surge resistance	1.5kV	Transmission characteristics	DIN EN 50173/CAT 5
Approved cable diameter	6mm 8mm	Connection cross section	0.14mm2 0.75mm2
Degree of protection	IP67	Ambient temperature	-25°C 85°C
CE marking (see declaration of conformity)	As per EU low voltage directive	LABS (PWIS) conformity	VDMA24364-B2-L
Note on materials	RoHS-compliant	Contamination level	3
Corrosion resistance class (CRC)	1 - Low corrosion stress	Housing material	Die-cast zinc Nickel-plated
Material of pin contacts	Brass Gold-plated	Manufacturer ID	1067905

Specifications may be subject to change without notice
