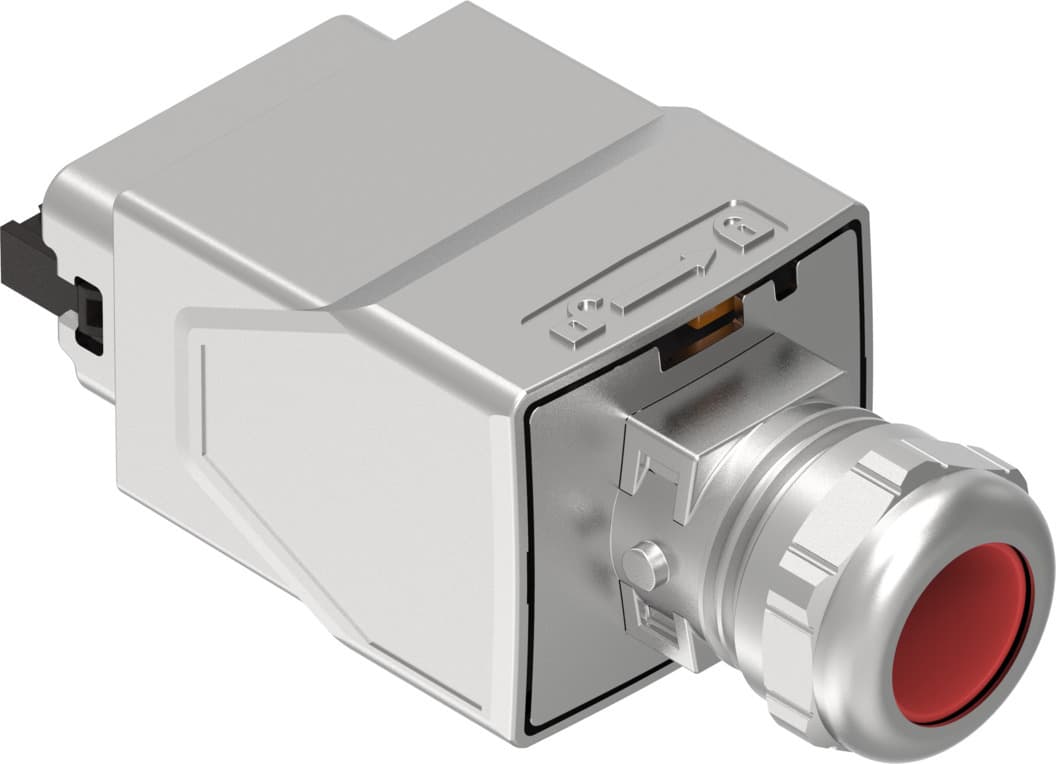

Product Model
necu-m-ppg5pp-c1-pn
Selling Points
- 1The NECU-M-PPG5PP-C1-PN power supply socket ensures seamless communication with PROFINET protocol, making it a reliable choice for industrial automation systems.
- 2With IP65 and IP67 protection, this socket is designed to withstand harsh industrial environments, ensuring optimal performance and durability.
- 3The socket operates within a DC voltage range of 0 to 24 V, making it versatile for various industrial applications.
- 4Capable of handling 16 A at 40°C, this power supply socket is engineered to support high current demands in industrial settings.
- 5Made from die-cast zinc with a nickel-plated finish, the NECU-M-PPG5PP-C1-PN exhibits low corrosion stress, ensuring long-term reliability in challenging environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protocol | PROFINET | Certification | c UL us - Recognized (OL) |
Certificate issuing authority | UL E328433 | Additional functions | Meets AIDA requirements |
Contact durability | 100 | Cable outlet | Straight |
Product weight | 109g | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram PP, coding at pins 2 and 5 |
Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, occupied pins/wires | 5 |
Electrical connection 1, type of mounting | Push-pull with interlock to prevent unintentional pulling | Electrical connection for input 1, connection pattern | 00995899 |
Electrical connection 2, connection technology | Spring-loaded terminal | DC operating voltage range | 0V 24V |
Current rating at 40° C | 16A | Surge resistance | 4kV |
Cable fitting | Pg13.5, hexagon, AF 22 | Cable diameter | 9mm 13mm |
Nominal conductor cross section | AWG18 - 13 | Degree of protection | IP65 IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 85°C |
Storage temperature | -40°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Fire tested | UL94 V-0 |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | Die-cast zinc, nickel-plated | Housing colour | Silver |
Seals material | NBR TPE-V | Material of pin contacts | Copper alloy, nickel-plated and gold-plated |
Manufacturer ID | 5195383 |
Specifications may be subject to change without notice
