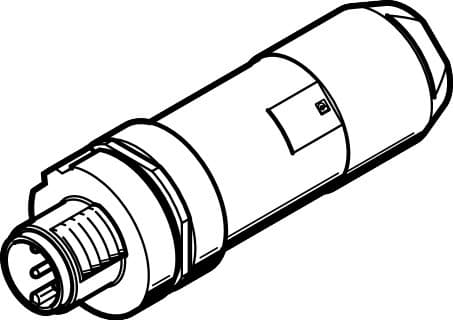

Product Model
necu-m-s-a12g4-is
Selling Points
- 1High surge resistance up to 0.8 kV.
- 2Operating voltage range from 0 to 30 V DC.
- 3Durable construction with nickel-plated die-cast zinc housing.
- 4Compatible with various cable lengths and insulation types.
- 5Meets EN 61076-2-101 and EN 61984 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Mounting position | Any | Product weight | 38g |
Electrical connection | 4-pin Spring-loaded terminal M12x1 Plug, straight | Plug coding | A |
DC operating voltage range | 0V 30V | Current rating at 40° C | 4A |
Approved cable diameter | 4mm 8mm | Connection cross section | 0.14mm2 0.5mm2 |
Degree of protection | IP65 IP67 | Ambient temperature | -40°C 85°C |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
Housing material | Die-cast zinc Nickel-plated | Material of pin contacts | Bronze Gold-plated |
Manufacturer ID | 575719 |
Specifications may be subject to change without notice
