Product Model
necu-m-s-b12g5-c2-pb
Selling Points

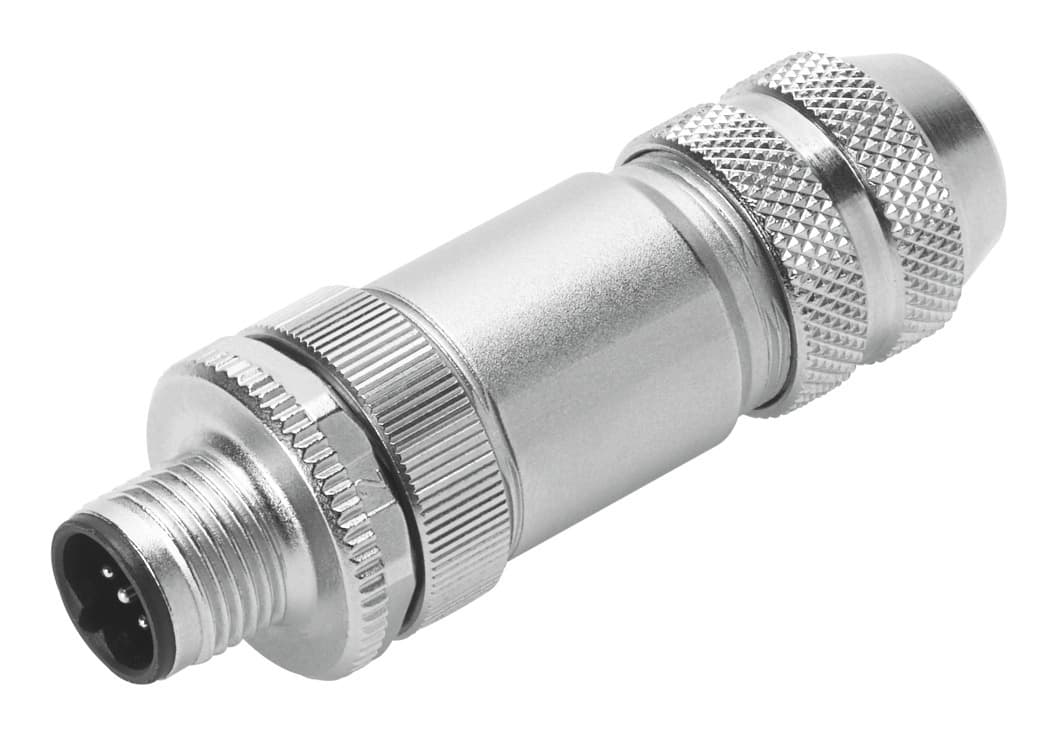

- 1The NECU-M-S-B12G5-C2-PB plug connector from Festo is designed to meet the standards of EN 61076-2-101 and EN 61984, ensuring high-quality and reliable electrical connections.
- 2This plug connector features a straight socket with an M12x1, 5-pin, B-coded connection, which is shieldable for enhanced protection against electromagnetic interference.
- 3The NECU-M-S-B12G5-C2-PB supports a wide range of operating voltages, from 0 to 60 V AC and DC, making it versatile for various applications.
- 4With a surge resistance of 1.5 kV and an IP67 degree of protection, this plug connector provides robust performance in harsh environments.
- 5The plug connector is made from die-cast zinc with nickel plating and gold-plated brass pin contacts, ensuring durability and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 EN 61984 | Product weight | 46.1g |
Electrical connection 1 | Straight plug, M12x1, 5-pin, B-coded, shieldable | Plug coding | B |
Electrical connection 2 | Screw terminal, can be shielded | DC operating voltage range | 0V 60V |
Operating voltage range AC | 0V 60V | Current rating at 40° C | 4A |
Surge resistance | 1.5kV | Transmission characteristics | DIN EN 50173/CAT 5 |
Approved cable diameter | 6mm 8mm | Connection cross section | 0.14mm2 0.75mm2 |
Degree of protection | IP67 | Ambient temperature | -25°C 85°C |
CE marking (see declaration of conformity) | As per EU low voltage directive | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | Die-cast zinc Nickel-plated |
Material of pin contacts | Brass Gold-plated | Manufacturer ID | 1066354 |
Specifications may be subject to change without notice
