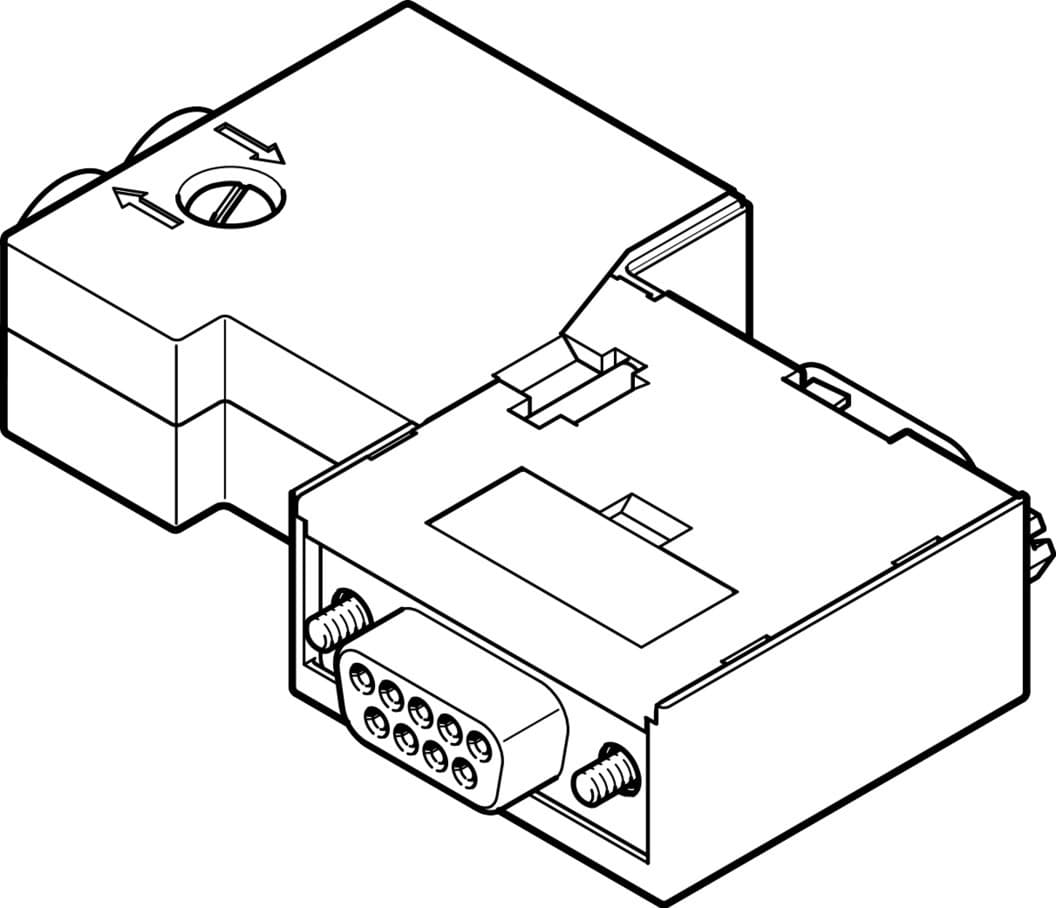

Product Model
necu-s1w9-c2-aco
Selling Points
- 14-40 UNC-2B Mounting: Secure and versatile mounting type for various industrial setups.
- 21 Mbps Baud Rate: High-speed communication for efficient data transfer.
- 3IP20 Protection: Robust protection against dust and water, ensuring reliable operation.
- 4Sub-D, 9-Pin Interface: Easy connection with field bus systems for seamless integration.
- 5PC-Reinforced Housing: Durable material for long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | 4-40 UNC-2B | Product weight | 59g |
Fieldbus interface | Sub-D, 9-pin, socket | Electrical connection 1 | Socket, Sub-D, 9-pin |
Electrical connection 2 | Screw terminal, can be shielded | Baud rate | 1 Mbit/s |
Approved cable diameter | 8mm | Connection cross section | 0.14mm2 0.5mm2 |
Degree of protection | IP20 | Ambient temperature | -20°C 70°C |
Relative air humidity | 75 % at 25 °C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | PC-reinforced | Manufacturer ID | 574588 |
Specifications may be subject to change without notice
