Product Model

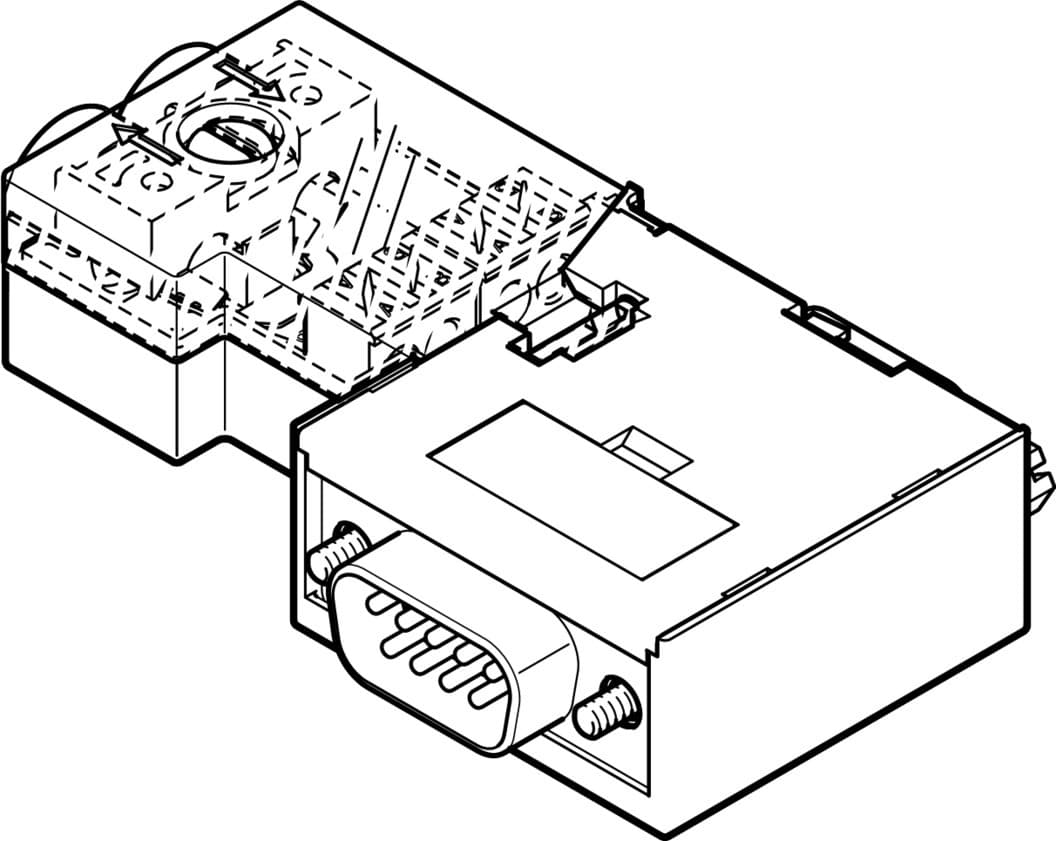

necu-s1w9-c2-apb
Selling Points
- 1Robust Fieldbus Interface: Equipped with a Sub-D 9-pin socket for reliable communication in pneumatic systems.
- 2High Corrosion Resistance: Classified as CRC 1, ensuring low corrosion stress and durability.
- 3Compact Design: Mounting type is 4-40 UNC-2B, making it easy to integrate into various setups.
- 4Fast Data Transfer: Supports baud rates up to 12 Mbit/s for efficient data transmission.
- 5Compliant with Industry Standards: Meets LABS (PWIS) conformity and VDMA24364-B2-L specifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | 4-40 UNC-2B | Product weight | 57.48g |
Fieldbus interface | Sub-D, 9-pin, socket | Electrical connection 1 | Sub-D plug, 9-pin |
Electrical connection 2 | IDC terminal | Baud rate | 12 Mbit/s |
Approved cable diameter | 8mm | Connection cross section | 0.08mm2 0.5mm2 |
Degree of protection | IP20 | Ambient temperature | -20°C 70°C |
Relative air humidity | 75 % at 25 °C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | PC-reinforced | Manufacturer ID | 574589 |
Specifications may be subject to change without notice
