Product Model
necu-s-ecg4-hx-q3
Selling Points

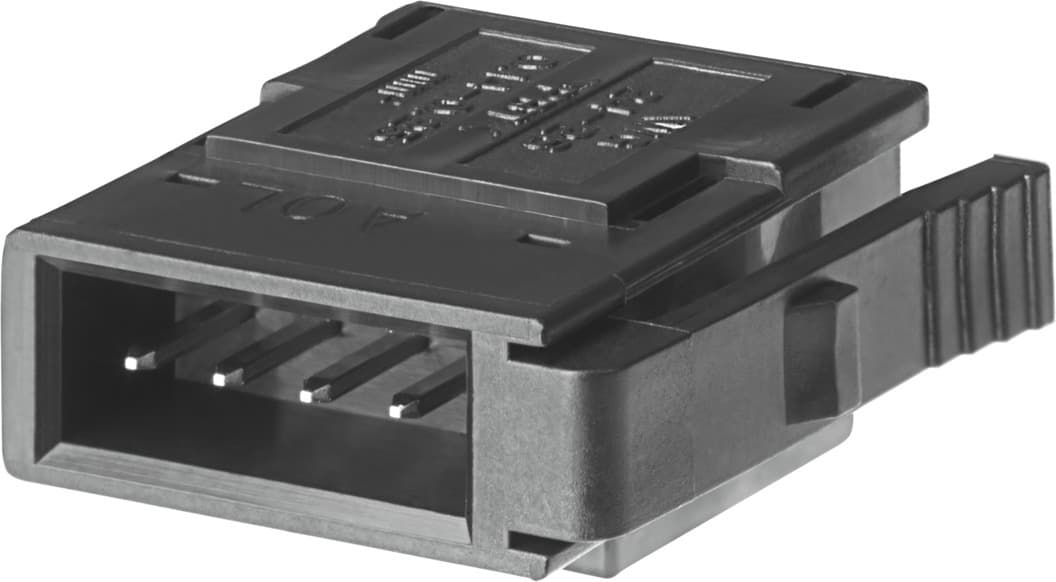

- 1The NECU-S-ECG4-HX-Q3 features a square design with a 4-pin straight plug, making it easy to integrate into your system.
- 2Recognized by c UL us, this connector ensures high reliability and safety in your electrical connections.
- 3Operates within a DC voltage range of 0 to 30V, suitable for various applications.
- 4Constructed with PBT and PC housing, gold-plated pin contacts, and compliant with RoHS regulations.
- 5IP40 rated for protection against solid particles, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Certification | c UL us - Recognized (OL) | Contact durability | 1 |
Type of mounting | Engaging | Electrical connection | 4-pin Straight plug/insulation displacement connector Rectangular design |
DC operating voltage range | 0V 30V | Current rating at 40° C | 3A |
Surge resistance | 0.8kV | Individual wire diameter | 0.07mm |
Wire diameter | 0.8mm 1mm | Connection cross section | 0.14mm2 |
Degree of protection | IP40 | Ambient temperature | -20°C 60°C |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Note on materials | RoHS-compliant |
Contamination level | 2 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | PBT PC | Material of pin contacts | Gold-plated |
Permissible insulating sheath | PP PVC TPE-E | Manufacturer ID | 570922 |
Specifications may be subject to change without notice
