Product Model

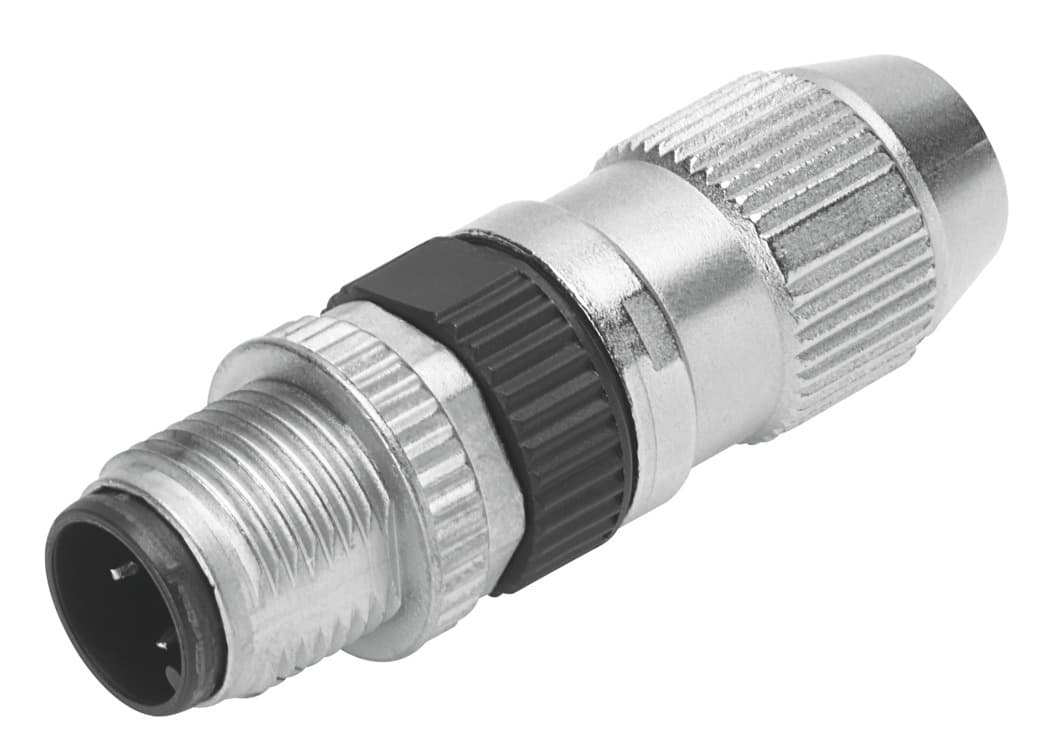

necu-s-m12g3-hx
Selling Points
- 1Nickel-plated, die-cast zinc housing ensures durability.
- 2Operates from -25°C to 85°C, suitable for various environments.
- 30.8 kV surge resistance for reliable electrical connections.
- 4Compatible with DC and AC voltages up to 48V.
- 5Meets EN 61076-2-101 and EN 61984 standards, certified by c UL us – Recognized (OL).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 EN 61984 | Certification | c UL us - Recognized (OL) |
Contact durability | 3 | Product weight | 17.5g |
Electrical connection | 3-pin A-coded M12x1 Straight plug/insulation displacement connector | DC operating voltage range | 0V 32V |
Operating voltage range AC | 0V 32V | Current rating at 40° C | 4A |
Surge resistance | 0.8kV | Approved cable diameter | 2.9mm 5.1mm |
Individual wire diameter | 0.1mm | Wire diameter | 0.9mm 1.6mm |
Connection cross section | 0.14mm2 0.34mm2 | Degree of protection | IP65 IP67 |
Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA Die-cast zinc Nickel-plated |
Material of screw-type lock | Die-cast zinc, nickel-plated | Seals material | FPM PUR |
Material of pin contacts | Gold-plated | Permissible insulating sheath | PP PVC TPE-E |
Manufacturer ID | 562027 |
Specifications may be subject to change without notice
