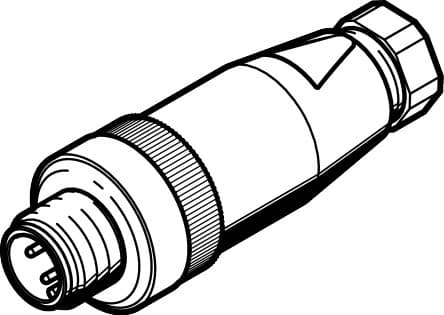

Product Model
necu-s-m12g4-p1-q6-is
Selling Points
- 1Withstands up to 2.5 kV, ensuring reliable electrical connections.
- 2Compatible with DC 0 V to 30 V and AC 0 V to 250 V.
- 3Made from PA housing and brass contacts, ensuring long-lasting performance.
- 4Can be assembled with any cable length and mounted in any position.
- 5Meets EN 61076-2-101 and EN 61984 standards for electrical connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 EN 61984 | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Contact durability | 50 | Mounting position | Any |
Product weight | 18g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock with hexagon AF 18 and longitudinal knurl |
Electrical connection for input 1, connection pattern | 00995386 | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Screw terminal | DC operating voltage range | 0V 30V |
Current rating at 40° C | 4A | Surge resistance | 2.5kV |
Cable fitting | Pg7 | Approved cable diameter | 2.5mm 2.9mm |
Connection cross section | 0.14mm2 0.5mm2 | Degree of protection | IP65 IP67 |
Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Housing material | PA | Material of union nut | PA |
Material of pin contacts | Brass White bronze, coated | Manufacturer ID | 570955 |
Specifications may be subject to change without notice
