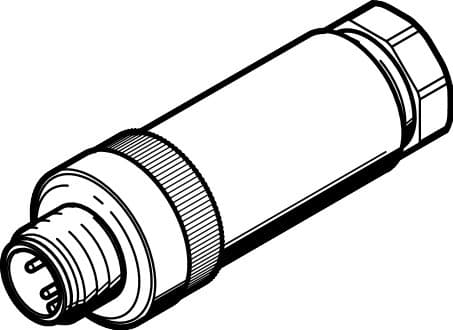

Festo NECU-S-M12G4-P2-IS Plug Connector - High-Quality Electrical Connection

Festo necu-s-m12g4-p2-is

Selling Points

1Ensures reliable and secure connections with a 4-pin M12x1 plug pattern.
2Compatible with any assembly position, making it easy to integrate into various systems.
3Withstands 2.5 kV, providing excellent protection against electrical surges.
4Conforms to RoHS standards and features a PA housing for long-lasting performance.
5Operates between -25°C to 85°C, suitable for diverse industrial environments.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Based on norm	EN 61076-2-101 EN 61984	Explosion prevention and protection	Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Contact durability	50	Mounting position	Any
Product weight	18g	Electrical connection 1, function	Field device end
Electrical connection 1, design	Round	Electrical connection 1, connection type	Plug
Electrical connection 1, cable outlet	Straight	Electrical connection 1, connection technology	M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires	4	Electrical connection 1, type of mounting	Screw-type lock with hexagon AF 18 and longitudinal knurl
Electrical connection for input 1, connection pattern	00995386	Electrical connection 2, connection type	Cable
Electrical connection 2, connection technology	Screw terminal	DC operating voltage range	0V 30V
Current rating at 40° C	4A	Surge resistance	2.5kV
Cable fitting	Pg9	Approved cable diameter	6mm 8mm
Connection cross section	0.75mm2	Degree of protection	IP65 IP67
Ambient temperature	-25°C 85°C	LABS (PWIS) conformity	VDMA24364-B2-L
Note on materials	RoHS-compliant	Contamination level	3
Housing material	PA	Material of union nut	PA
Material of pin contacts	Brass White bronze, coated	Manufacturer ID	570954

Specifications may be subject to change without notice
