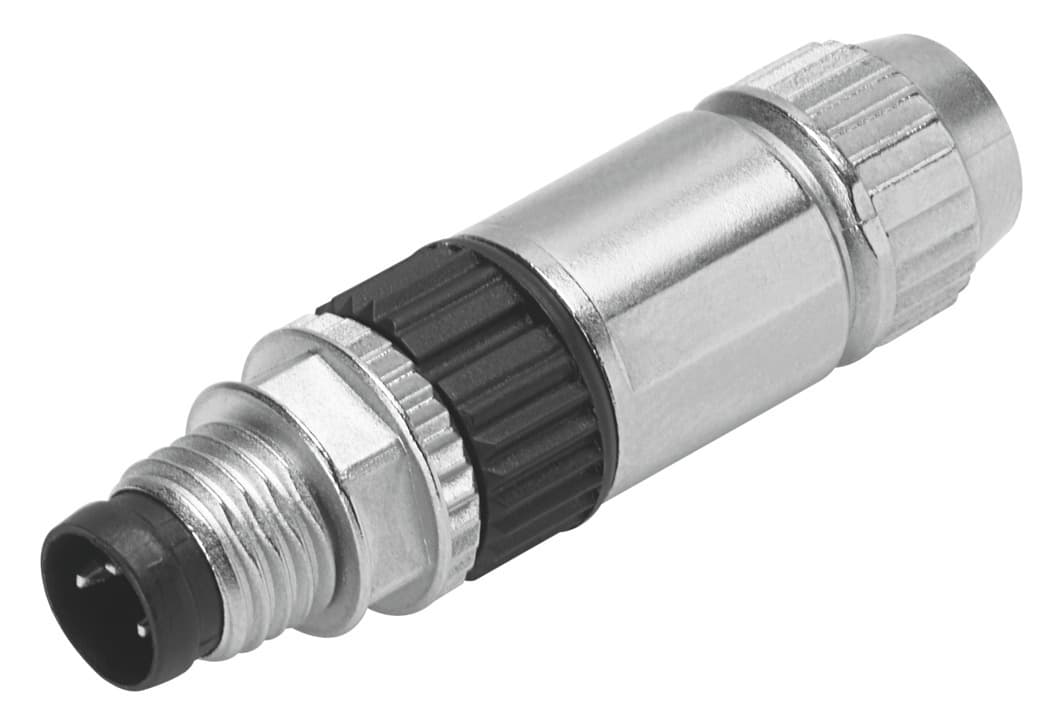

Product Model
necu-s-m8g3-hx
Selling Points
- 10.8 kV surge resistance ensures reliable operation in harsh environments.
- 2Durable and resistant to dust and water, suitable for various industrial settings.
- 3Compatible with DC and AC voltages from 0 to 32 V.
- 43-pin M8x1 straight plug with a weight of 7.8 g, perfect for space-constrained applications.
- 5Meets EN 61076-2-104 and EN 61984 standards for quality and safety assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-104 EN 61984 | Certification | c UL us - Recognized (OL) |
Contact durability | 3 | Product weight | 7.8g |
Electrical connection | 3-pin M8x1 Straight plug/insulation displacement connector | DC operating voltage range | 0V 32V |
Operating voltage range AC | 0V 32V | Current rating at 40° C | 4A |
Surge resistance | 0.8kV | Approved cable diameter | 2.5mm 5.1mm |
Individual wire diameter | 0.1mm | Wire diameter | 0.9mm 1.6mm |
Connection cross section | 0.14mm2 0.34mm2 | Degree of protection | IP65 IP67 |
Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA Die-cast zinc Nickel-plated |
Material of screw-type lock | Brass, nickel-plated | Seals material | FPM PUR |
Material of pin contacts | Gold-plated | Permissible insulating sheath | PP PVC TPE-E |
Manufacturer ID | 562024 |
Specifications may be subject to change without notice
