Product Model
necu-s-m8g4-c2
Selling Points

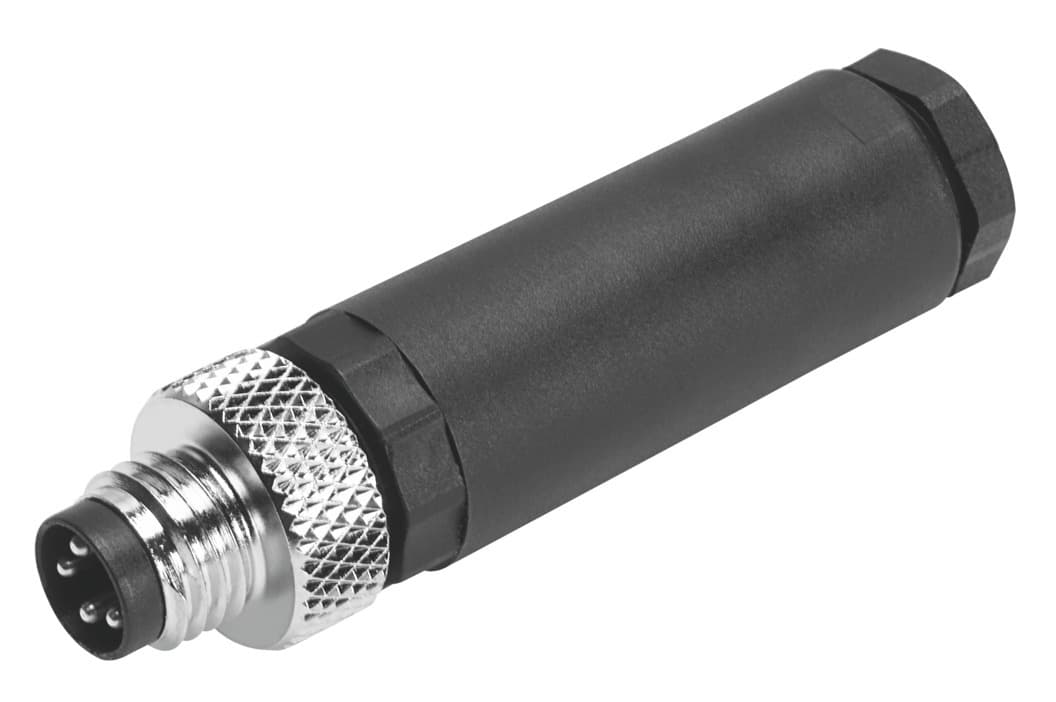

- 1The NECU-S-M8G4-C2 plug is designed with a round, M8x1 A-coded connection, conforming to the standard EN 61076-2-104, ensuring compatibility with a wide range of systems.
- 2This plug features a screw-type lock with AF9 for secure mounting and can be assembled with any cable lengths, making it highly versatile for various applications.
- 3The NECU-S-M8G4-C2 has a high surge resistance of 0.8 kV and operates within a voltage range of 0 to 30 V DC and AC, ensuring reliable performance in demanding environments.
- 4With a current rating of up to 4 A at 40°C, this plug is suitable for applications requiring moderate to high current flow, making it ideal for industrial automation and control systems.
- 5The plug is made from high-quality materials, including PA housing and brass, nickel-plated screw-type locks and gold-plated pin contacts, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 61076-2-104 | Contact durability | 100 |
Cable outlet | Straight | Product weight | 9.1g |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 4 |
Electrical connection 1, type of mounting | Screw-type lock with AF 9 | Electrical connection for input 1, connection pattern | 00991171 |
Electrical connection 2, connection technology | Screw terminal | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 4A |
Surge resistance | 0.8kV | Cable diameter | 3.5mm 5mm |
Nominal conductor cross section | 0.14mm2 0.5mm2 | Degree of protection | IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -25°C 85°C |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Housing material | PA | Housing colour | Black |
Material of screw-type lock | Brass, nickel-plated | Material of pin contacts | Brass, gold-plated |
Manufacturer ID | 1068198 |
Specifications may be subject to change without notice
