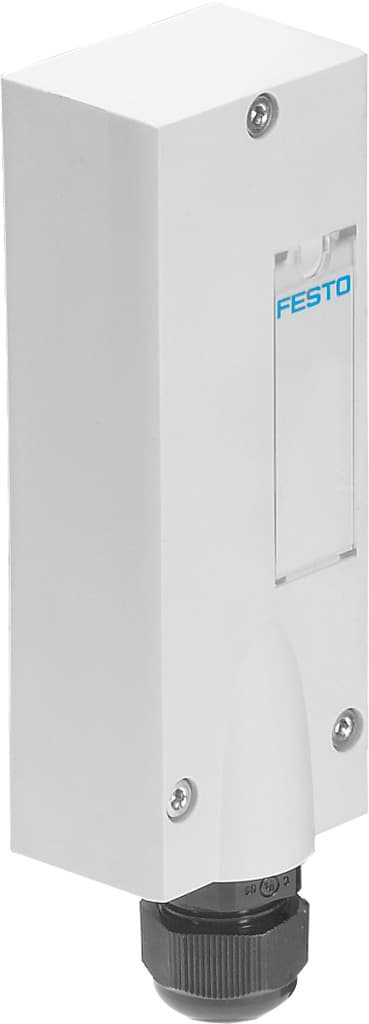

Product Model
necv-s1w37
Selling Points
- 1Angular Design: The NECV-S1W37 features an angular design for easy installation and space efficiency.
- 237-Pin Connection: Equipped with a 37-pin Sub-D connection for secure and reliable electrical connections.
- 3IP65 Protection: Offers IP65 protection, ensuring the valve terminal is dust- and water-resistant in assembled conditions.
- 4Ambient Temperature Range: Operates within a wide ambient temperature range of -5°C to 50°C, making it suitable for various environments.
- 5Easy Assembly: Designed for in-house assembly without cables, reducing complexity and installation time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Area of application | Only for multi-pin connection of valve manifold VTSA/VTSA-F | Product weight | 180g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Angled |
Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 37 |
Electrical connection 1, occupied pins/wires | 37 | Electrical connection 1, type of mounting | 3x M4 screw |
Electrical connection for input 1, connection pattern | 00995644 | Electrical connection 2, connection technology | Crimp contacts |
DC operating voltage range | 0V 30V | Current rating at 40° C | 2A |
Surge resistance | 1kV | Cable fitting | M20x1.5 |
Cable diameter | 5mm 13mm | Nominal conductor cross section | 0.08mm2 0.5mm2 |
Degree of protection | IP65 NEMA 4 | Note on degree of protection | In mounted state |
Ambient temperature | -5°C 50°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Housing material | PA |
Manufacturer ID | 545974 |
