Product Model

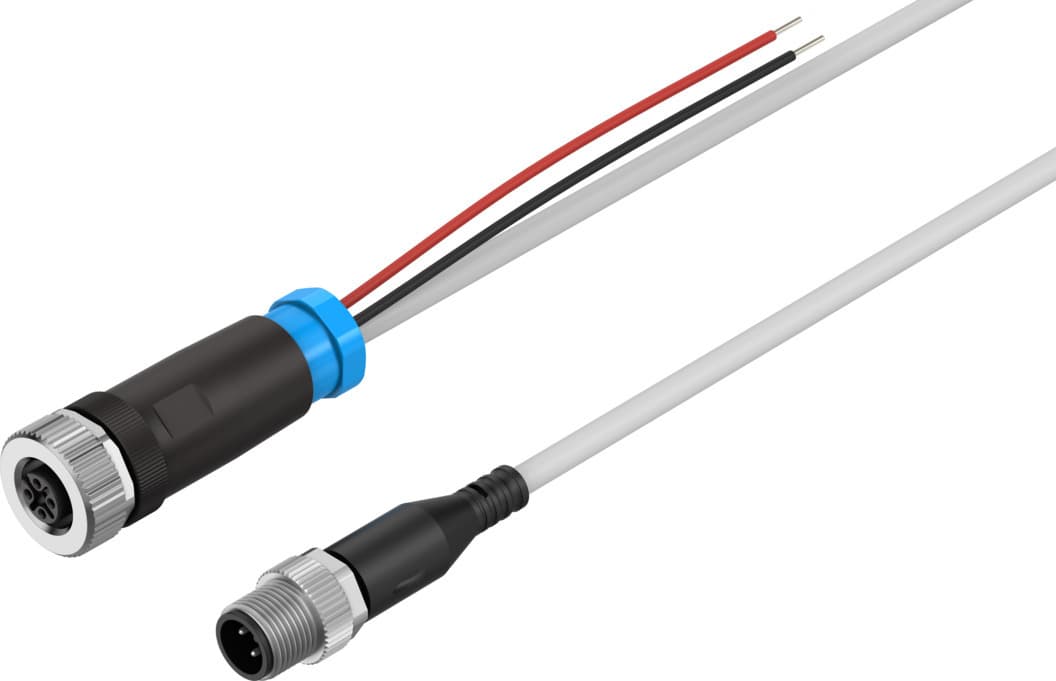

nedu-l1r2-m12g5-m12le-1r
Selling Points
- 1High-Quality IO-Link Communication: Ensures reliable and efficient data transfer between field devices and controllers.
- 2Robust IP Protection: Offers IP65, IP68, and IP69K protection for reliable operation in harsh environments.
- 3Easy Assembly: Simple mounting process with screw-type locks and clear contact assignments.
- 4Versatile Cable Design: Includes 3x0.25 mm² and 2x0.5 mm² cable configurations for flexible installation.
- 5Compliant with EN 61076-2-101: Meets international standards for electrical connectors, ensuring compatibility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 | Structural design | Y-distributor with cable on controller side |
Distributor type | 1 to 2 | Additional functions | Additional supply for port B |
Cable designation | Without label holder | Contact durability | 100 |
Product weight | 72.5g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, occupied pins/wires | 5 |
Electrical connection 1, type of mounting | Screw-type lock with hexagon AF 18 and longitudinal knurl | Electrical connection for input 1, connection pattern | 00995384 |
Electrical connection 2, function | IO-Link? Communication | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 3 |
Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Screw-type lock with hexagon AF 13 and longitudinal knurl |
Electrical connection 2, connection pattern | 00995573 | Electrical connection 3, function | Additional supply |
Electrical connection 3, connection type | 2x single wires | Electrical connection 3, connection technology | Open end |
Electrical connection 3, number of pins/wires | 2 | Electrical connection 3, occupied pins/wires | 2 |
DC operating voltage range | 0V 30V | Nominal operating voltage DC | 24V |
Current rating at 40° C | 4A | Surge resistance | 0.8kV |
Protective earth connection | Not available | Shield | no |
Cable length | 1m | Cable length 1 | 1m |
Cable length 2 | 1m | Cable characteristic | for static applications |
Bending radius 1, fixed cable installation | 11.7mm | Bending radius 2, fixed cable installation | 6mm |
Cable diameter 1 | 3.8mm | Cable diameter tolerance 1 | ± 0.1 mm |
Cable diameter 2 | 1.75mm | Cable diameter 2 tolerance | ± 0.05 mm |
Cable design 1 | 3 x 0.25 mm2 | Cable design 2 | 2 x 0.5 mm2 |
Nominal conductor cross section | 0.5mm2 | Degree of protection | IP65 IP68 IP69K |
Note on degree of protection | IP40 for socket M12 In mounted state | Ambient temperature | -30°C 80°C |
Storage temperature | -30°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | PA TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Brass, nickel-plated Die-cast zinc, nickel-plated |
Seals material | NBR | Material of pin contacts | Bronze, nickel-plated and gold-plated Brass, gold-plated |
Insulating sheath material | PVC | Manufacturer ID | 8091516 |
Specifications may be subject to change without notice
