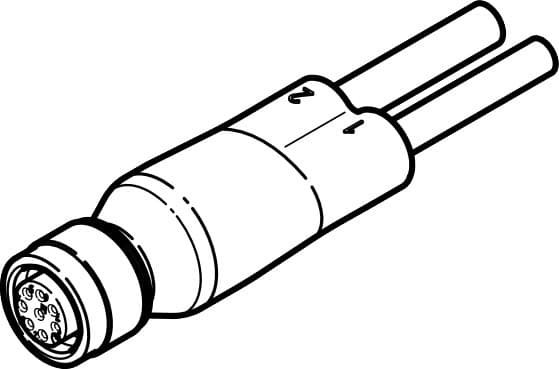

Product Model
nedu-l1r2-v9-m12g8-e-le5-5r1-le3-5r2
Selling Points
- 1The Festo NEDU-L1R2-V9-M12G8-E-LE5-5R1-LE3-5R2 cable features IO-Link technology for simplified communication with sensors and actuators, making it ideal for industrial automation applications.
- 2This cable offers a surge resistance of 0.8 kV, ensuring reliable operation in harsh electrical environments and protecting your equipment from voltage spikes.
- 3The cable has two distinct electrical connections: one with a socket connector for field device communication and another with a plug connector for controller communication, both using M12x1 A-coded connectors.
- 4The NEDU-L1R2-V9-M12G8-E-LE5-5R1-LE3-5R2 cable is designed for static applications and has a cable diameter of 4.5 mm on the controller side and 1.75 mm for additional supply, ensuring flexibility and durability.
- 5This cable is rated for a DC operating voltage range of 0 V to 30 V and has a nominal operating voltage of 24 V, making it suitable for a variety of industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 | Structural design | Y-distributor with cable on field device/controller side |
Distributor type | 1 to 2 | Additional functions | Connection of sensor and controller to proportional pressure control valve |
Cable designation | Without label holder | Product weight | 377g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 8 |
Electrical connection 1, occupied pins/wires | 6 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 5 | Electrical connection 2, occupied pins/wires | 5 |
Electrical connection 3, function | Field device end | Electrical connection 3, connection type | Cable |
Electrical connection 3, connection technology | Open end | Electrical connection 3, number of pins/wires | 3 |
Electrical connection 3, occupied pins/wires | 3 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 2A |
Surge resistance | 0.8kV | Shield | yes |
Cable length 1 | 5m | Cable length 2 | 5m |
Cable diameter 1 | 5.3mm | Cable diameter 2 | 4.5mm |
Cable design | 3 x 0.25 mm2 5 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Brass, nickel-plated | Seals material | FPM |
Material of pin contacts | Brass, gold-plated | Insulating sheath material | PVC |
Manufacturer ID | 2903567 |
Specifications may be subject to change without notice
